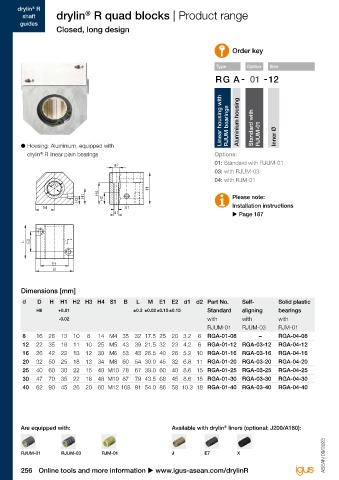

drylin R drylin R
®
®
®
®
shaft drylin R quad blocks | Product range drylin R quad blocks | Product range shaft
guides guides
Closed, long design Open, long design
Order key Order key

Type Option Size Type Option Size

Linear housing with RJUM bearings Aluminium housing Standard with Linear housing with OJUM bearings Aluminium housing Standard with

● Housing: Aluminium, equipped with RJUM-01 Inner Ø ● Housing: Aluminium, equipped with OJUM-01 Inner Ø
drylin R linear plain bearings Options: drylin R linear plain bearings Options:
®
®
60°
d2 W d2
d2 01: Standard with RJUM-01 60° 01: Standard with OJUM-01
03: with RJUM-03 W d2 03: with OJUM-03
d D d D
H 04: with RJM-01 H
d D H4 d D
H1 H H1 H4 H2
H3 H4 H2 H3 H
M H3 H1 H2 S1 Please note: M H3 H1 H4 H2 S1 Please note:
d1 Installation instructions d1 Installation instructions
M S1 M S1
d1 u Page 187 d1 u Page 187

E2
L L E2
L E2 L E2

E1 E1
B B
E1 E1
B B

Dimensions [mm] Dimensions [mm]
d D H H1 H2 H3 H4 S1 B L M E1 E2 d1 d2 Part No. Self- Solid plastic d D H H1 H2 H3 H4 S1 B L M E1 E2 d1 d2 W Part No. Self-
H6 +0.01 ±0.3 ±0.02 ±0.15 ±0.15 Standard aligning bearings H6 +0.01 ±0.3 ±0.02 ±0.15 ±0.15 +0.6 Standard aligning
-0.02 with with with -0.02 with with
RJUM-01 RJUM-03 RJM-01 OJUM-01 OJUM-03
8 16 28 13 10 8 14 M4 35 32 17.5 25 20 3.2 6 RGA-01-08 – RGA-04-08 12 22 28 18 11 8 25 M5 43 39 21.5 32 23 4.2 8 14 OGA-01-12 OGA-03-12
12 22 35 18 11 10 25 M5 43 39 21.5 32 23 4.2 6 RGA-01-12 RGA-03-12 RGA-04-12 16 26 35 22 13 12 30 M6 53 43 26.5 40 26 5.2 10 17 OGA-01-16 OGA-03-16
16 26 42 22 13 12 30 M6 53 43 26.5 40 26 5.2 10 RGA-01-16 RGA-03-16 RGA-04-16 20 32 42 25 18 13 34 M8 60 54 30.0 45 32 6.8 11 17 OGA-01-20 OGA-03-20
20 32 50 25 18 13 34 M8 60 54 30.0 45 32 6.8 11 RGA-01-20 RGA-03-20 RGA-04-20 25 40 51 30 22 15 40 M10 78 67 39.0 60 40 8.6 15 21 OGA-01-25 OGA-03-25
25 40 60 30 22 15 40 M10 78 67 39.0 60 40 8.6 15 RGA-01-25 RGA-03-25 RGA-04-25 30 47 60 35 22 16 48 M10 87 79 43.5 68 45 8.6 15 21 OGA-01-30 OGA-03-30
30 47 70 35 22 16 48 M10 87 79 43.5 68 45 8.6 15 RGA-01-30 RGA-03-30 RGA-04-30 40 62 77 45 26 20 60 M12 108 91 54.0 86 58 10.3 18 27 OGA-01-40 OGA-03-40
40 62 90 45 26 20 60 M12 108 91 54.0 86 58 10.3 18 RGA-01-40 RGA-03-40 RGA-04-40

Are equipped with: Available with drylin liners (optional: J200/A180): Are equipped with: Available with drylin liners (optional: J200/A180):
®
®
ASEAN 09/2023 ASEAN 09/2023

RJUM-01 RJUM-03 RJM-01 J E7 X OJUM-01 OJUM-03 J E7 X

256
256 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 257
