P. 254

drylin  R                                                                                                                                                                                                                 drylin  R
                                                                                                                                                                                                                                      ®
            ®
                               ®
                                                                                                                                           ®

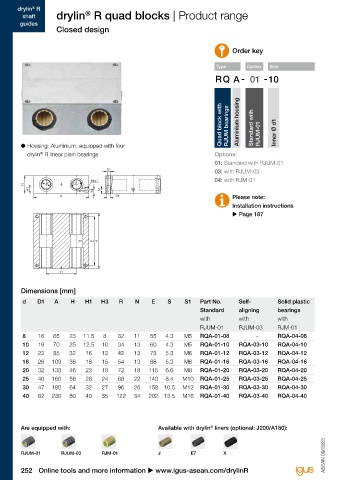

         shaft       drylin  R quad blocks | Product range                                                                       drylin  R quad blocks | Product range                                                             shaft
        guides                                                                                                                                                                                                                    guides
                     Closed design                                                                                               Open design
                                                                                   Order key                                                                                                               Order key


                                                                             Type       Option  Size                                                                                                 Type       Option  Size






                                                                               Quad block with   RJUM bearings  Aluminium housing  Standard with   RJUM-01  Inner Ø d1                                 Quad block with   OJUM bearings  Aluminium housing  Standard with   OJUM-01  Inner Ø d1







        ● 	Housing: Aluminium, equipped with four                                                                                ● 	Housing: Aluminium, equipped with four
           drylin  R linear plain bearings                                  Options:                                               drylin  R linear plain bearings                                   Options:
                                                                                                                                       ®
               ®
                                                                            01: Standard with RJUM-01                                              60°                                               01: Standard with OJUM-01
                                       S                                    03: with RJUM-03                                                       W           S                                     03: with OJUM-03
                                 M8x1                                       04: with RJM-01                                              d         D1
                 d         D1                                                                                                                            M8x1
         H                                                                                                                       H
           H1                       N                                                                                              H1                       N
                                  H3
                      A                   S1                                       Please note:                                               A                   S1                                       Please note:
                                                                                   Installation instructions                                                                                               Installation instructions
                                                                                   u Page 187                                                                                                              u Page 187





                                  E  A                                                                                                                    E  A




                      R                                                                                                                       R


        Dimensions [mm]                                                                                                          Dimensions [mm]
         d    D1    A     H    H1    H3    R    N     E     S     S1   Part No.      Self-         Solid plastic                 d       D1     A      H     H1     W      R     N      E      S     S1   Part No.        Self-
                                                                       Standard      aligning      bearings                                                                                               Standard        aligning
                                                                       with          with          with                                                                                                   with            with
                                                                       RJUM-01       RJUM-03       RJM-01                                                                                                 OJUM-01         OJUM-03
         8    16    65   23   11.5   8    32    11    55   4.3    M5   RQA-01-08           –       RQA-04-08                     12      22     85     30    18     14    42     13     73    5.3   M6    OQA-01-12       OQA-03-12
         10   19    70   25   12.5   10   34    13    60   4.3    M5   RQA-01-10     RQA-03-10     RQA-04-10                     16      26    100     35    22     17    54     13     88    5.3   M6    OQA-01-16       OQA-03-16
         12   22    85   32    16    13   42    13    73   5.3    M6   RQA-01-12     RQA-03-12     RQA-04-12                     20      32    130     42    25     17    72     18    115    6.8   M8    OQA-01-20       OQA-03-20
         16   26   100   36    18    15   54    13    88   5.3    M6   RQA-01-16     RQA-03-16     RQA-04-16                     25      40    160     51    30     21    88     22    140    9.0   M10   OQA-01-25       OQA-03-25
         20   32   130   46    23    19   72    18   115   6.6    M8   RQA-01-20     RQA-03-20     RQA-04-20                     30      47    180     60    35     21    96     26    158   10.5   M12   OQA-01-30       OQA-03-30
         25   40   160   56    28    24   88    22   140   8.4   M10   RQA-01-25     RQA-03-25     RQA-04-25                     40      62    230     77    45     27    122    34    202   13.5   M16   OQA-01-40       OQA-03-40
         30   47   180   64    32    27   96    26   158   10.5  M12   RQA-01-30     RQA-03-30     RQA-04-30
         40   62   230   80    40    35   122   34   202   13.5  M16   RQA-01-40     RQA-03-40     RQA-04-40





        Are equipped with:                               Available with drylin  liners (optional: J200/A180):                    Are equipped with:                              Available with drylin  liners (optional: J200/A180):
                                                                           ®
                                                                                                                                                                                                   ®
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023

        RJUM-01        RJUM-03       RJM-01              J          E7         X                                                 OJUM-01       OJUM-03                           J          E7          X

        252 Online tools and more information u www.igus-asean.com/drylinR                                                                  3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR              253
