drylin R
®
®

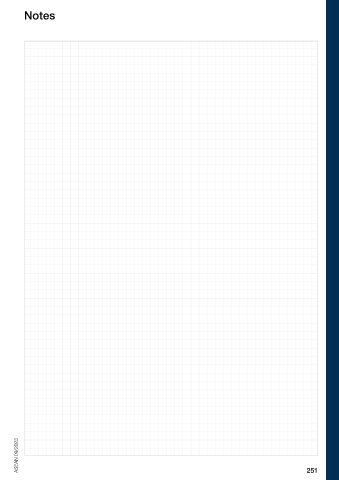

shaft drylin R flanged linear plain bearings | Product range New Notes
guides
Adapter with clip-in liners made from iglidur W360 (precision),
®
round flange
Order key

Type Size

Option:
T: Tandem

With flange drylin ® R Clip-in liner Metric Tandem Inner Ø d1
● Up to 50% lower clearance in operation iglidur ® W360 Square design

A-A ( 1 : 1 ) A-A ( 1 : 1 ) Bf
Bf
A A ts ts
db ds db ds
dt dt
d1 d1 d3 d2 d3 d2

A A
B B

Dimensions [mm] - flanged linear plain bearing

d1 d2 d3 dt B Bf ts db ds Part No.
+0.01 +0.05 H7
12 22 42 32 32 9 4.1 4.5 7.5 FRW360CM-01-12 New
16 26 46 36 36 9 4.1 4.5 7.5 FRW360CM-01-12 New
20 32 54 43 45 11 5.1 5.5 9.0 FRW360CM-01-12 New

Dimensions [mm] - flanged linear plain bearing, tandem design
d1 d2 d3 dt B Bf ts db ds Part No.
+0.04 +0.01 H7
12 22 42 32 57 9 4.1 4.5 7.5 FRW360CMT-01-12 New
16 26 46 36 70 9 4.1 4.5 7.5 FRW360CMT-01-12 New
20 32 54 43 80 11 5.1 5.5 9.0 FRW360CMT-01-12 New

ASEAN 09/2023 ASEAN 09/2023
