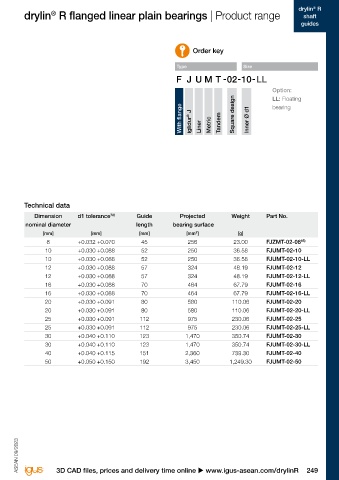

Page 251 - IGUS Linear

drylin R drylin R
®
®
®
®
shaft drylin R flanged linear plain bearings | Product range drylin R flanged linear plain bearings | Product range shaft
FJUMT-01
FJUMT-01
guides guides
Closed, anodised aluminium adapters, square flange, tandem design
d2
d2 d1 Order key
d1 dt
dt
FJUMT-02 FJUMT-02 Type Size
k
k B
B
Option:
db db LL: Floating
Bf ts Bf ts bearing
With flange iglidur ® J Liner Metric Tandem Inner Ø d1
ds ds
d3 dt d3 dt Square design

®
● Equipped with two liners to increase the guide 78) According to igus testing method u Page 260
length 85) Fitted with two pieces of JSM-0810-16
Please note: Installation instructions u Page 187

Dimensions [mm] Technical data

d1 d2 d3 dt k B Bf ts db ds Dimension d1 tolerance 78) Guide Projected Weight Part No.
h7 nominal diameter length bearing surface
[mm] [mm] [mm] [mm²] [g]
8.0 16 32 24 25 45 8 3.1 3.5 6.0 8 +0.032 +0.070 45 256 23.00 FJZMT-02-08 85)
10.0 19 39 29 30 52 9 4.1 4.5 7.5 10 +0.030 +0.088 52 250 36.58 FJUMT-02-10
10.4 19 39 29 30 52 9 4.1 4.5 7.5 10 +0.030 +0.088 52 250 36.58 FJUMT-02-10-LL
12.0 22 42 32 32 57 9 4.1 4.5 7.5 12 +0.030 +0.088 57 324 48.19 FJUMT-02-12
12.4 22 42 32 32 57 9 4.1 4.5 7.5 12 +0.030 +0.088 57 324 48.19 FJUMT-02-12-LL
16.0 26 46 36 35 70 9 4.1 4.5 7.5 16 +0.030 +0.088 70 464 67.79 FJUMT-02-16
16.4 26 46 36 35 70 9 4.1 4.5 7.5 16 +0.030 +0.088 70 464 67.79 FJUMT-02-16-LL
20.0 32 54 43 42 80 11 5.1 5.5 9.0 20 +0.030 +0.091 80 580 110.06 FJUMT-02-20
20.5 32 54 43 42 80 11 5.1 5.5 9.0 20 +0.030 +0.091 80 580 110.06 FJUMT-02-20-LL
25.0 40 62 51 50 112 11 5.1 5.5 9.0 25 +0.030 +0.091 112 975 230.06 FJUMT-02-25
25.5 40 62 51 50 112 11 5.1 5.5 9.0 25 +0.030 +0.091 112 975 230.06 FJUMT-02-25-LL
30.0 47 76 62 60 123 14 6.1 6.6 11.0 30 +0.040 +0.110 123 1,470 350.74 FJUMT-02-30
30.6 47 76 62 60 123 14 6.1 6.6 11.0 30 +0.040 +0.110 123 1,470 350.74 FJUMT-02-30-LL
40.0 62 98 80 75 151 18 8.1 9.0 14.0 40 +0.040 +0.115 151 2,360 739.30 FJUMT-02-40
50.0 75 112 94 88 192 18 8.1 9.0 14.0 50 +0.050 +0.150 192 3,450 1,249.30 FJUMT-02-50

Available with drylin liners (optional: J200/A180):
®
ASEAN 09/2023 ASEAN 09/2023

J E7 X

248 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 249
