drylin R drylin R
®
®
®
®

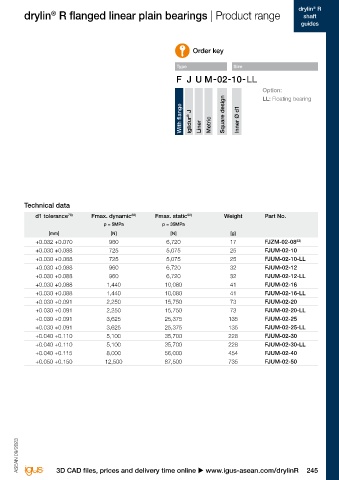

shaft drylin R flanged linear plain bearings | Product range drylin R flanged linear plain bearings | Product range shaft
guides guides
Closed, anodised aluminium adapters, square flange
Order key

Bf Type Size
ts
k
db ds
Option:
d2 d1 d3 LL: Floating bearing

B dt With flange iglidur ® J Liner Metric Square design Inner Ø d1

®
78) According to igus testing method u Page 260
82) Design tips u Page 186
Please note: Installation instructions u Page 187

Dimensions [mm] Technical data

d1 d2 d3 dt k B Bf ts db ds d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight Part No.
h7 ±0.15 ±0.15 p = 5MPa p = 35MPa
[mm] [N] [N] [g]
8.0 16 32 24 25 25 8 3.1 3.5 6.0 +0.032 +0.070 960 6,720 17 FJZM-02-08 82)
10.0 19 39 29 30 29 9 4.1 4.5 7.5 +0.030 +0.088 725 5,075 25 FJUM-02-10
10.4 19 39 29 30 29 9 4.1 4.5 7.5 +0.030 +0.088 725 5,075 25 FJUM-02-10-LL
12.0 22 42 32 32 32 9 4.1 4.5 7.5 +0.030 +0.088 960 6,720 32 FJUM-02-12
12.4 22 42 32 32 32 9 4.1 4.5 7.5 +0.030 +0.088 960 6,720 32 FJUM-02-12-LL
16.0 26 46 36 35 36 9 4.1 4.5 7.5 +0.030 +0.088 1,440 10,080 41 FJUM-02-16
16.4 26 46 36 35 36 9 4.1 4.5 7.5 +0.030 +0.088 1,440 10,080 41 FJUM-02-16-LL
20.0 32 54 43 42 45 11 5.1 5.5 9.0 +0.030 +0.091 2,250 15,750 73 FJUM-02-20
20.5 32 54 43 42 45 11 5.1 5.5 9.0 +0.030 +0.091 2,250 15,750 73 FJUM-02-20-LL
25.0 40 62 51 50 58 11 5.1 5.5 9.0 +0.030 +0.091 3,625 25,375 135 FJUM-02-25
25.5 40 62 51 50 58 11 5.1 5.5 9.0 +0.030 +0.091 3,625 25,375 135 FJUM-02-25-LL
30.0 47 76 62 60 68 14 6.1 6.6 11.0 +0.040 +0.110 5,100 35,700 228 FJUM-02-30
30.6 47 76 62 60 68 14 6.1 6.6 11.0 +0.040 +0.110 5,100 35,700 228 FJUM-02-30-LL
40.0 62 98 80 75 80 18 8.1 9.0 14.0 +0.040 +0.115 8,000 56,000 454 FJUM-02-40
50.0 75 112 94 88 100 18 8.1 9.0 14.0 +0.050 +0.150 12,500 87,500 735 FJUM-02-50

Available with drylin liners (optional: J200/A180):
®
ASEAN 09/2023 ASEAN 09/2023

J E7 X
