drylin R drylin R
®
®
®
®

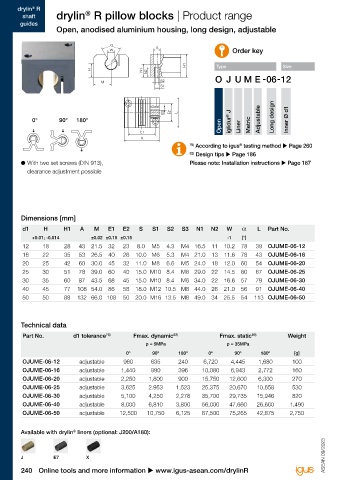

shaft drylin R pillow blocks | Product range drylin R pillow blocks | Product range New shaft
guides d1 H1 guides
Open, anodised aluminium housing, long design, adjustable Split linear housings made of solid plastic, econ
N
H
M
A L
S S S
W W W Order key Order key
d1 d1 d1 S d1 H1
H1 H1 H1 Type Size H N Type Size
H H H N1 N1 N2 N2 N1 N2 E
M
L
A
S2
M M M S2 S2
S1
S1 S1
S S S
d1
d1
Installation size
S3 S3 E2 E2 L L S3 E2 L 12-20 E
0° 90° 180° iglidur ® J Adjustable Long design Inner Ø d1 H1 / N H1 / N Closed iglidur ® J Polymer Compact Inner Ø d1
E1 E1 E1 Open Liner Metric H H Liner Metric
A A A
E E
78) According to igus testing method u Page 260 78) According to igus testing method u Page 260
®
®
82) Design tips u Page 186 82) Design tips u Page 186
● With two set screws (DIN 913), Please note: Installation instructions u Page 187 Please note: Installation instructions u Page 187
clearance adjustment possible
L L
● Linear housings made of robust lightweight
Installation size ®
25/30 A A igus polymers
● Suitable for all type 02 liners (compact bearing)

Dimensions [mm] Dimensions [mm]
d1 H H1 A M E1 E2 S S1 S2 S3 N1 N2 W a L Part No. d1 H H1 A M E S N L Screws Part No.

+0.01; -0.014 ±0.02 ±0.15 ±0.15 -1 [°] min. max. min. max.
12 18 28 43 21.5 32 23 8.0 M5 4.3 M4 16.5 11 10.2 78 39 OJUME-06-12 12 15 33 40 20.0 29 4.2 18.5 32 M4 RJUMP-05-12 New

16 22 35 53 26.5 40 26 10.0 M6 5.3 M4 21.0 13 11.6 78 43 OJUME-06-16 16 17 36 45 22.5 34 4.2 20.5 35 M4 RJUMP-05-16 New

20 25 42 60 30.0 45 32 11.0 M8 6.6 M5 24.0 18 12.0 60 54 OJUME-06-20 20 19 41 53 26.5 40 5.2 23.5 35 M5 RJUMP-05-20 New
25 30 51 78 39.0 60 40 15.0 M10 8.4 M6 29.0 22 14.5 60 67 OJUME-06-25 25 27 54 65 – 48 8.5 -0.1 54.0 45 M8 RJUMP-05-25 New
30 35 60 87 43.5 68 45 15.0 M10 8.4 M6 34.0 22 16.6 57 79 OJUME-06-30 30 30 60 70 – 53 8.5 -0.1 60.0 58 M8 RJUMP-05-30 New
40 45 77 108 54.0 86 58 18.0 M12 10.5 M8 44.0 26 21.0 56 91 OJUME-06-40
50 50 88 132 66.0 108 50 20.0 M16 13.5 M8 49.0 34 25.5 54 113 OJUME-06-50

Technical data Technical data

Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight Part No. d1 tolerance 78) Permissible loads Max. T. 179) Weight
p = 5MPa p = 35MPa
0º 90º 180º 0º 90º 180º [g] [mm] [N] [Nm] [g]
OJUME-06-12 adjustable 960 635 240 6,720 4,445 1,680 100 RJUMP-05-12 New +0.0 / +0.1 160 0.5 78
OJUME-06-16 adjustable 1,440 990 396 10,080 6,943 2,772 160 RJUMP-05-16 New +0.0 / +0.1 240 1.0 106
OJUME-06-20 adjustable 2,250 1,800 900 15,750 12,600 6,300 270 RJUMP-05-20 New +0.1 / +0.2 300 2.0 132
OJUME-06-25 adjustable 3,625 2.953 1,523 25,375 20,670 10,658 530 RJUMP-05-25 New +0.1 / +0.2 400 10.0 90
OJUME-06-30 adjustable 5,100 4,250 2,278 35,700 29,735 15,946 820 RJUMP-05-30 New +0.1 / +0.2 500 10.0 121
OJUME-06-40 adjustable 8,000 6,810 3,800 56,000 47,660 26,600 1,490 179) Recommended fastening screw tightening torque; screw lock recommended
OJUME-06-50 adjustable 12,500 10,750 6,125 87,500 75,265 42,875 2,750

®
Available with drylin liners (optional: J200/A180):
ASEAN 09/2023 ASEAN 09/2023

J E7 X
240 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 241
