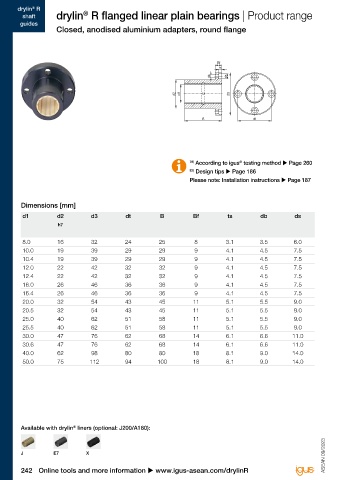

Page 244 - IGUS Linear

drylin R drylin R
®
®
®
®
shaft drylin R flanged linear plain bearings | Product range drylin R flanged linear plain bearings | Product range shaft
guides guides
Closed, anodised aluminium adapters, round flange
Order key

Bf
ts Type Size
db ds

Option:
d2 d1 d3 LL: Floating bearing

With flange iglidur ® J Liner Metric Inner Ø d1

B dt Round design

78) According to igus testing method u Page 260
®
82) Design tips u Page 186
Please note: Installation instructions u Page 187

Dimensions [mm] Technical data

d1 d2 d3 dt B Bf ts db ds d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight Part No.
h7 p = 5MPa p = 35MPa
[mm] [N] [N] [g]
8.0 16 32 24 25 8 3.1 3.5 6.0 +0.032 +0.070 960 6,720 20 FJZM-01-08
10.0 19 39 29 29 9 4.1 4.5 7.5 +0.030 +0.088 725 5,075 32 FJUM-01-10
10.4 19 39 29 29 9 4.1 4.5 7.5 +0.030 +0.088 725 5,075 32 FJUM-01-10-LL
12.0 22 42 32 32 9 4.1 4.5 7.5 +0.030 +0.088 960 6,720 42 FJUM-01-12
12.4 22 42 32 32 9 4.1 4.5 7.5 +0.030 +0.088 960 6,720 42 FJUM-01-12-LL
16.0 26 46 36 36 9 4.1 4.5 7.5 +0.030 +0.088 1,440 10,080 51 FJUM-01-16
16.4 26 46 36 36 9 4.1 4.5 7.5 +0.030 +0.088 1,440 10,080 51 FJUM-01-16-LL
20.0 32 54 43 45 11 5.1 5.5 9.0 +0.030 +0.091 2,250 15,750 88 FJUM-01-20
20.5 32 54 43 45 11 5.1 5.5 9.0 +0.030 +0.091 2,250 15,750 88 FJUM-01-20-LL
25.0 40 62 51 58 11 5.1 5.5 9.0 +0.030 +0.091 3,625 25,375 152 FJUM-01-25
25.5 40 62 51 58 11 5.1 5.5 9.0 +0.030 +0.091 3,625 25,375 152 FJUM-01-25-LL
30.0 47 76 62 68 14 6.1 6.6 11.0 +0.040 +0.110 5,100 35,700 266 FJUM-01-30
30.6 47 76 62 68 14 6.1 6.6 11.0 +0.040 +0.110 5,100 35,700 266 FJUM-01-30-LL
40.0 62 98 80 80 18 8.1 9.0 14.0 +0.040 +0.115 8,000 56,000 552 FJUM-01-40
50.0 75 112 94 100 18 8.1 9.0 14.0 +0.050 +0.150 12,500 87,500 853 FJUM-01-50

Available with drylin liners (optional: J200/A180):
®
ASEAN 09/2023 ASEAN 09/2023

J E7 X
