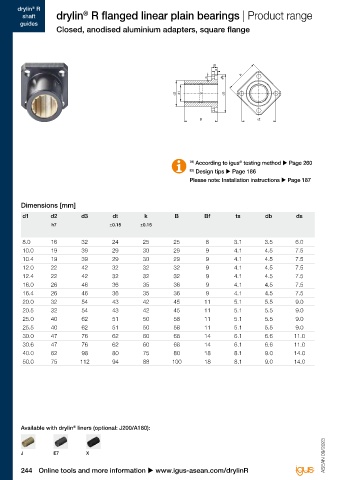

drylin  R                                                                                                                                                                                                                 drylin  R
                                                                                                                                                                                                                                      ®
            ®
                              ®
                                                                                                                                          ®
         shaft       drylin  R flanged linear plain bearings | Product range                                                     drylin  R flanged linear plain bearings | Product range                                           shaft
        guides                                                                                                                                                                                                                    guides
                     Closed, anodised aluminium adapters, square flange
                                                                                                                                                                                            Order key


                                                                            Bf                                                                                                        Type                Size
                                                                             ts
                                                                                      k
                                                                          db   ds
                                                                                                                                                                                                                    Option:
                                                               d2  d1           d3                                                                                                                                  LL: Floating bearing




                                                                       B                   dt                                                                                           With flange  iglidur ®  J  Liner  Metric  Square design  Inner Ø d1







                                                                                     ®
                                                                    78)  According to igus  testing method u Page 260
                                                                    82)  Design tips u Page 186
                                                                    Please note: Installation instructions u Page 187



        Dimensions [mm]                                                                                                          Technical data

         d1        d2         d3         dt         k         B          Bf         ts        db         ds                          d1 tolerance 78)   Fmax. dynamic 82)      Fmax. static 82)        Weight        Part No.
                   h7                  ±0.15      ±0.15                                                                                                     p = 5MPa             p = 35MPa
                                                                                                                                         [mm]                  [N]                  [N]                  [g]
         8.0       16         32        24         25         25         8         3.1        3.5        6.0                         +0.032 +0.070            960                 6,720                  17          FJZM-02-08 82)
         10.0      19         39        29         30         29         9         4.1        4.5        7.5                         +0.030 +0.088            725                 5,075                  25          FJUM-02-10
         10.4      19         39        29         30         29         9         4.1        4.5        7.5                         +0.030 +0.088            725                 5,075                  25          FJUM-02-10-LL
         12.0      22         42        32         32         32         9         4.1        4.5        7.5                         +0.030 +0.088            960                 6,720                  32          FJUM-02-12
         12.4      22         42        32         32         32         9         4.1        4.5        7.5                         +0.030 +0.088            960                 6,720                  32          FJUM-02-12-LL
         16.0      26         46        36         35         36         9         4.1        4.5        7.5                         +0.030 +0.088            1,440               10,080                 41          FJUM-02-16
         16.4      26         46        36         35         36         9         4.1        4.5        7.5                         +0.030 +0.088            1,440               10,080                 41          FJUM-02-16-LL
         20.0      32         54        43         42         45         11        5.1        5.5        9.0                         +0.030 +0.091            2,250               15,750                 73          FJUM-02-20
         20.5      32         54        43         42         45         11        5.1        5.5        9.0                         +0.030 +0.091            2,250               15,750                 73          FJUM-02-20-LL
         25.0      40         62        51         50         58         11        5.1        5.5        9.0                         +0.030 +0.091            3,625               25,375                135          FJUM-02-25
         25.5      40         62        51         50         58         11        5.1        5.5        9.0                         +0.030 +0.091            3,625               25,375                135          FJUM-02-25-LL
         30.0      47         76        62         60         68         14        6.1        6.6       11.0                         +0.040 +0.110           5,100                35,700                228          FJUM-02-30
         30.6      47         76        62         60         68         14        6.1        6.6       11.0                         +0.040 +0.110           5,100                35,700                228          FJUM-02-30-LL
         40.0      62         98        80         75         80         18        8.1        9.0       14.0                         +0.040 +0.115           8,000                56,000                454          FJUM-02-40
         50.0      75        112        94         88        100         18        8.1        9.0       14.0                         +0.050 +0.150           12,500               87,500                735          FJUM-02-50













        Available with drylin  liners (optional: J200/A180):
                           ®
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023

        J           E7         X
