drylin  R                                                                                                                                                                                                                 drylin  R
                                                                                                                                                                                                                                      ®
            ®
                              ®
                                                                                                                                          ®

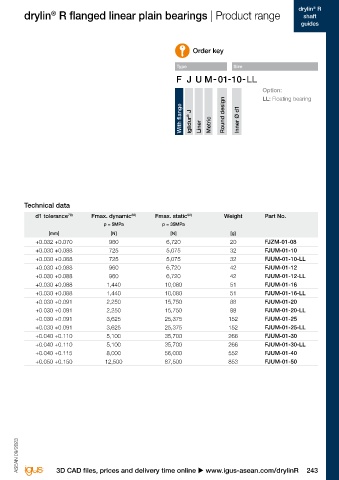

         shaft       drylin  R flanged linear plain bearings | Product range                                                     drylin  R flanged linear plain bearings | Product range                                           shaft
        guides                                                                                                                                                                                                                    guides
                     Closed, anodised aluminium adapters, round flange
                                                                                                                                                                                            Order key

                                                                             Bf
                                                                              ts                                                                                                      Type                Size
                                                                           db    ds

                                                                                                                                                                                                                    Option:
                                                               d2  d1             d3                                                                                                                                LL: Floating bearing

                                                                                                                                                                                        With flange  iglidur ®  J  Liner  Metric  Inner Ø d1

                                                                        B                 dt                                                                                                           Round design







                                                                    78)  According to igus  testing method u Page 260
                                                                                     ®
                                                                    82)  Design tips u Page 186
                                                                    Please note: Installation instructions u Page 187



        Dimensions [mm]                                                                                                          Technical data

         d1          d2          d3          dt          B           Bf          ts         db          ds                           d1 tolerance 78)   Fmax. dynamic 82)      Fmax. static 82)        Weight        Part No.
                     h7                                                                                                                                     p = 5MPa             p = 35MPa
                                                                                                                                         [mm]                  [N]                  [N]                  [g]
         8.0         16          32          24          25          8          3.1         3.5         6.0                          +0.032 +0.070            960                 6,720                  20          FJZM-01-08
         10.0        19          39          29          29          9          4.1         4.5         7.5                          +0.030 +0.088            725                 5,075                  32          FJUM-01-10
         10.4        19          39          29          29          9          4.1         4.5         7.5                          +0.030 +0.088            725                 5,075                  32          FJUM-01-10-LL
         12.0        22          42          32          32          9          4.1         4.5         7.5                          +0.030 +0.088            960                 6,720                  42          FJUM-01-12
         12.4        22          42          32          32          9          4.1         4.5         7.5                          +0.030 +0.088            960                 6,720                  42          FJUM-01-12-LL
         16.0        26          46          36          36          9          4.1         4.5         7.5                          +0.030 +0.088            1,440               10,080                 51          FJUM-01-16
         16.4        26          46          36          36          9          4.1         4.5         7.5                          +0.030 +0.088            1,440               10,080                 51          FJUM-01-16-LL
         20.0        32          54          43          45          11         5.1         5.5         9.0                          +0.030 +0.091            2,250               15,750                 88          FJUM-01-20
         20.5        32          54          43          45          11         5.1         5.5         9.0                          +0.030 +0.091            2,250               15,750                 88          FJUM-01-20-LL
         25.0        40          62          51          58          11         5.1         5.5         9.0                          +0.030 +0.091            3,625               25,375                152          FJUM-01-25
         25.5        40          62          51          58          11         5.1         5.5         9.0                          +0.030 +0.091            3,625               25,375                152          FJUM-01-25-LL
         30.0        47          76          62          68          14         6.1         6.6         11.0                         +0.040 +0.110            5,100               35,700                266          FJUM-01-30
         30.6        47          76          62          68          14         6.1         6.6         11.0                         +0.040 +0.110           5,100                35,700                266          FJUM-01-30-LL
         40.0        62          98          80          80          18         8.1         9.0         14.0                         +0.040 +0.115           8,000                56,000                552          FJUM-01-40
         50.0        75          112         94         100          18         8.1         9.0         14.0                         +0.050 +0.150           12,500               87,500                853          FJUM-01-50













        Available with drylin  liners (optional: J200/A180):
                           ®
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023

        J           E7         X

        242 Online tools and more information u www.igus-asean.com/drylinR                                                                  3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR              243
