drylin R drylin R
®
®
®
®
FJUMT-01

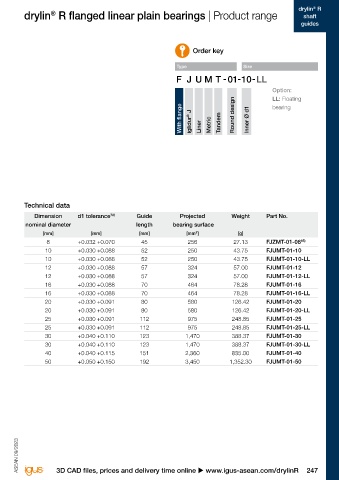

shaft drylin R flanged linear plain bearings | Product range drylin R flanged linear plain bearings | Product range shaft
guides guides
Closed, anodised aluminium adapters, round flange, tandem design
d2
d1 Order key
dt
FJUMT-02 Type Size
FJUMT-01
k
B
Option:
db LL: Floating

d2 Bf ts bearing
d1 ds
dt d3 dt With flange Round design Inner Ø d1
FJUMT-02 iglidur ® J Liner Metric Tandem

k
B
db
Bf
®
● Equipped with two liners to increase the guide 78) According to igus testing method u Page 260
ts
ds
length d3 dt 85) Fitted with two pieces of JSM-0810-16
Please note: Installation instructions u Page 187

Dimensions [mm] Technical data

d1 d2 d3 dt B Bf ts db ds Dimension d1 tolerance 78) Guide Projected Weight Part No.
h7 nominal diameter length bearing surface
[mm] [mm] [mm] [mm²] [g]
8.0 16 32 24 45 8 3.1 3.5 6.0 8 +0.032 +0.070 45 256 27.13 FJZMT-01-08 85)
10.0 19 39 29 52 9 4.1 4.5 7.5 10 +0.030 +0.088 52 250 43.75 FJUMT-01-10
10.4 19 39 29 52 9 4.1 4.5 7.5 10 +0.030 +0.088 52 250 43.75 FJUMT-01-10-LL
12.0 22 42 32 57 9 4.1 4.5 7.5 12 +0.030 +0.088 57 324 57.00 FJUMT-01-12
12.4 22 42 32 57 9 4.1 4.5 7.5 12 +0.030 +0.088 57 324 57.00 FJUMT-01-12-LL
16.0 26 46 36 70 9 4.1 4.5 7.5 16 +0.030 +0.088 70 464 78.28 FJUMT-01-16
16.4 26 46 36 70 9 4.1 4.5 7.5 16 +0.030 +0.088 70 464 78.28 FJUMT-01-16-LL
20.0 32 54 43 80 11 5.1 5.5 9.0 20 +0.030 +0.091 80 580 126.42 FJUMT-01-20
20.5 32 54 43 80 11 5.1 5.5 9.0 20 +0.030 +0.091 80 580 126.42 FJUMT-01-20-LL
25.0 40 62 51 112 11 5.1 5.5 9.0 25 +0.030 +0.091 112 975 248.85 FJUMT-01-25
25.5 40 62 51 112 11 5.1 5.5 9.0 25 +0.030 +0.091 112 975 248.85 FJUMT-01-25-LL
30.0 47 76 62 123 14 6.1 6.6 11.0 30 +0.040 +0.110 123 1,470 388.37 FJUMT-01-30
30.6 47 76 62 123 14 6.1 6.6 11.0 30 +0.040 +0.110 123 1,470 388.37 FJUMT-01-30-LL
40.0 62 98 80 151 18 8.1 9.0 14.0 40 +0.040 +0.115 151 2,360 835.00 FJUMT-01-40
50.0 75 112 94 192 18 8.1 9.0 14.0 50 +0.050 +0.150 192 3,450 1,352.30 FJUMT-01-50

Available with drylin liners (optional: J200/A180):
®
ASEAN 09/2023 ASEAN 09/2023

J E7 X

246 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 247
