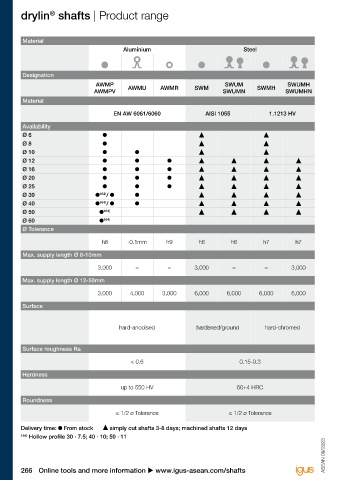

drylin shafts | Product range
®

Material
Aluminium Steel Stainless steel, hardened Drawn stainless steel Carbon

Designation
AWMP SWUM SWUMH EWUM EEWUM
AWMPV AWMU AWMR SWM SWUMN SWMH SWUMHN EWM EWUMN EEWM EEWUMN EWMR EWMS EWUMS CWM
Material
1.4034 1.4301 1.4571 CFK
EN AW 6061/6060 AISI 1055 1.1213 HV AISI 440B
(AISI 420) (AISI 304) (AISI 316Ti) composite
Availability
Ø 6
Ø 8
Ø 10
Ø 12
Ø 16
Ø 20
Ø 25
Ø 30 164) /
Ø 40 164) /
Ø 50 164)
Ø 60 164)
Ø Tolerance
h8 -0.1mm h9 h6 h6 h7 h7 h6 h6 h6 h6 h9 h9 h9 -0.1mm

Max. supply length Ø 8-10mm

3,000 – – 3,000 – – 3,000 – – 3,000 – – – – 2,000

Max. supply length Ø 12-50mm

3,000 4,000 3,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 3,000 3,000 3,000 2,000
Surface

UCU
unidirectional/
hard-anodised hardened/ground hard-chromed hardened/ground drawn, polished
cross winding/
unidirectional

Surface roughness Ra
< 0.6 0.15-0.3 0.15-0.3 0.3-0.6 < 0.6µm

Hardness

up to 550 HV 60+4 HRC 52+8 HRC unhardened –

Roundness

≤ 1/2 ø Tolerance ≤ 1/2 ø Tolerance ≤ 1/2 ø Tolerance ≤ 1/2 ø Tolerance ± 0.05 mm

Delivery time: From stock simply cut shafts 3-8 days; machined shafts 12 days
164) Hollow profile 30 · 7.5; 40 · 10; 50 · 11
