Page 624 - IGUS Linear

drylin drylin
®
®
®
®
drive drylin drive technology | Accessories | Product range drylin | Linear axes with motor | SHT-ROU drive
technology technology
accessories accessories

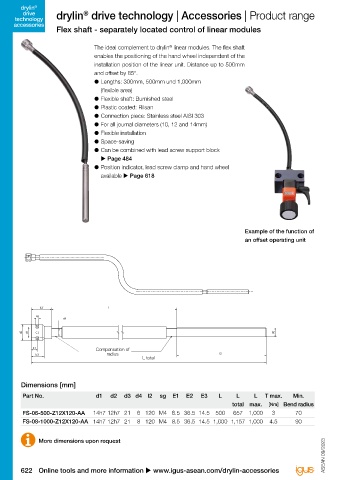

Flex shaft - separately located control of linear modules
®
With the drylin Remote Operation Unit ROU, linear
The ideal complement to drylin linear modules. The flex shaft modules can be controlled remotely
®
enables the positioning of the hand wheel independent of the With the Remote Operation Unit, hazards such as chemicals
installation position of the linear unit. Distance up to 500mm or heat can be avoided. Thanks to the flex shaft, they can
and offset by 85°. also be easily manipulated.
● Lengths: 300mm, 500mm und 1,000mm Use e. g. of chemicals, heat, places that are hazardous
(flexible area) ● for people working in them
● Flexible shaft: Burnished steel Enables manual remote control of linear modules
● Plastic coated: Rilsan ● Ergonomic operation via flex shaft
● Connection piece: Stainless steel AISI 303 ● Safe control of linear modules outside the work area
● For all journal diameters (10, 12 and 14mm) ● Available with flex shaft with Ø 6 and 8mm in different
● Flexible installation ● lengths
● Space-saving Thanks to the adapter plate, position indicators as
● Can be combined with lead screw support block ● well as lead screw clamps can be fitted in 4 operating
u Page 484 directions (0°, 90°, 180°, 270°)
● Position indicator, lead screw clamp and hand wheel Reduction sleeves for quick and simple connection
available u Page 618 ●
to lead screw size Ø8/10/12 available AK-0047
(Ø14->8mm); AK-0048 (Ø14->10mm), AK-0049
(Ø14->12mm)

Typical application areas:
● Format adjustment
Example of the function of ● Cabin construction
L total
an offset operating unit ● Hazard areas
L + 120 E2
E1 T1 E2
l2 L
S3
S4
d1 d2 H E4 E3 E5 B1
S2
tk ts S1 d3 d4
kt ha S1
H B T B1
lt
E2 L
sg
d4 A E1 A E1 d2
d3 d1 d2
Dimensions [mm]
E1 Compensation of
radius
E3 Radienausgleich l2 Part No. L L l2 d2 d3 d4 E1 E2 E3 E4 S3 H
L total
Lges. Total
SHT-ROU-06-300 300 457 78 12 9 6 20 37 22 20 4.5 60
SHT-ROU-06-500 500 657 78 12 9 6 20 37 22 20 4.5 60
Dimensions [mm] SHT-ROU-08-500 500 657 78 12 11 8 20 37 22 20 4.5 60
Part No. d1 d2 d3 d4 l2 sg E1 E2 E3 L L L T max. Min. SHT-ROU-08-1000 1000 1157 78 12 11 8 20 37 22 20 4.5 60
total max. [Nm] Bend radius
Part No. B T1 A E5 lt tk ts kt ha S1 d1
FS-06-500-Z12X120-AA 14h7 12h7 21 6 120 M4 8.5 36.5 14.5 500 657 1,000 3 70
FS-08-1000-Z12X120-AA 14h7 12h7 21 8 120 M4 8.5 36.5 14.5 1,000 1,157 1,000 4.5 90
SHT-ROU-06-300 60 6 72 54 36 15 9 8.6 23 M10 14H7
SHT-ROU-06-500 60 6 72 54 36 15 9 8.6 23 M11 14H7
More dimensions upon request SHT-ROU-08-500 60 6 72 54 36 15 9 8.6 23 M12 14H7
ASEAN 09/2023 ASEAN 09/2023 SHT-ROU-08-1000 60 6 72 54 36 15 9 8.6 23 M13 14H7

622 Online tools and more information u www.igus-asean.com/drylin-accessories 3D CAD files, prices and delivery time online u www.igus-asean.com/drylin-accessories 623
