drylin drylin
®
®
®
®
drive drylin drive technology | Accessories | Product range drylin drive technology | Accessories | Product range drive
technology technology
accessories accessories

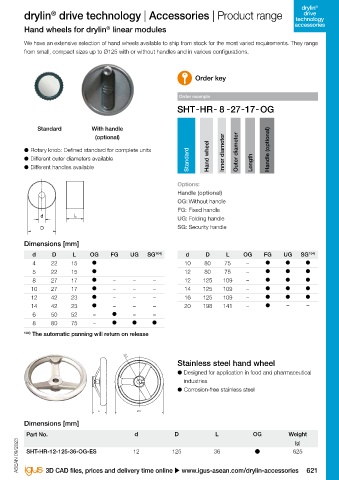

Lead screw clamp Hand wheels for drylin linear modules
®
Linear modules with trapezoidal threads are equipped with a self-locking mechanism. Many applications call for an additional We have an extensive selection of hand wheels available to ship from stock for the most varied requirements. They range
clamping option as an additional safeguard against unintentional movement. from small, compact sizes up to Ø125 with or without handles and in various configurations.

Order key

Order example

Standard With handle
(optional)

● Shaft clamp adapter for attaching to the position ● Rotary knob: Defined standard for complete units Inner diameter Outer diameter Handle (optional)
indicator and subsequent clamping of the lead screw. ● Different outer diameters available Standard Hand wheel
● Provides a mechanical brake to the lead screw ● Different handles available Length
● Material: plastic housing with aluminium shaft clamp
● Reduction sleeves for further diameters available Options:
Handle (optional)
OG: Without handle
Assembly and positioning with adapter plate FG: Fixed handle
u Page 687 UG: Folding handle
SG: Security handle

Dimensions [mm] Dimensions [mm]

Part No. SHT-HK-12 SHT-HK-16 SHT-HK-20 SHT-HK-30 d D L OG FG UG SG 104) d D L OG FG UG SG 104)
Lead screw size 10 14 12 14 4 22 15 10 80 75 –
Dimensions (B x H x T) 32 x 46 x 15 32 x 46 x 15 32 x 46 x 15 32 x 46 x 15 5 22 15 12 80 75 –
8 27 17 – – – 12 125 109 –
10 27 17 – – – 14 125 109 –
12 42 23 – – – 16 125 109 –
14 42 23 – – – 20 198 141 – – –
H 6 50 52 – – –
8 80 75 –
104) The automatic panning will return on release
T B

Dimensions [mm] Ø d
Stainless steel hand wheel
Part No. SHT-HK-06 SHT-HK-06.35 SHT-HK-08
● Designed for application in food and pharmaceutical
Lead screw size 6 6.35 8 industries
Dimensions (B x H x T) 23 x 38 x 11.5 23 x 38 x 11.5 23 x 38 x 11.5 ● Corrosion-free stainless steel

L Ø D
Dimensions [mm]
Part No. d D L OG Weight
ASEAN 09/2023 ASEAN 09/2023 SHT-HR-12-125-36-OG-ES 12 125 36 625
[g]

620 Online tools and more information u www.igus-asean.com/drylin-accessories 3D CAD files, prices and delivery time online u www.igus-asean.com/drylin-accessories 621
