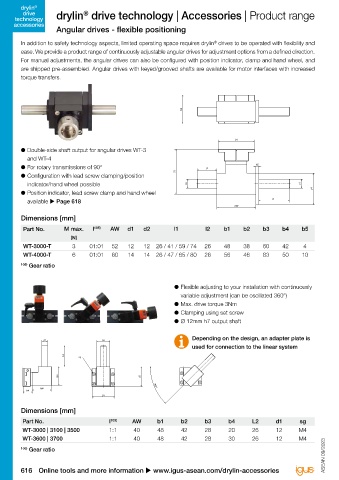

Angular drives - flexible positioning Angular drives for heavy duty and hygienic design
In addition to safety technology aspects, limited operating space requires drylin drives to be operated with flexibility and
®
ease. We provide a product range of continuously adjustable angular drives for adjustment options from a defined direction.
For manual adjustments, the angular drives can also be configured with position indicator, clamp and hand wheel, and drylin angular drives provide for a maximum of positioning
®
are shipped pre-assembled. Angular drives with keyed/grooved shafts are available for motor interfaces with increased flexibility. The form fitting connection can give a maximum
torque transfers. torque of up to 6Nm.
● Flexible adjusting to your installation with continuously
variable adjustment (can be oscillated 360°)
● Max. drive torque 6Nm through coupling
b2
● Fixed using feather key groove
● Input shaft Ø 14mm h7 with size
®
● Compatible with drylin SHT/SHTC/SLW
(sizes 16, 20 and 30)
b1
● Position indicator, lead screw clamp and hand wheel
● Double-side shaft output for angular drives WT-3 available u Page 618
and WT-4
● For rotary transmissions of 90° l2 b5
b3
● Configuration with lead screw clamping/position Dimensions [mm]
indicator/hand wheel possible d2 d1 Part No. l 105) AW b1 b2 b3 b4 L2 d1 sg
b4
● Position indicator, lead screw clamp and hand wheel WT-4000 | 4100 | 4200 | 4700 1:1 60 52 51 40 23 26 14 M4
available u Page 618 l1 WT-4600 1:1 60 52 51 40 33 26 14 M4
AW
105) Gear ratio
Dimensions [mm]

Part No. M max. l 105) AW d1 d2 l1 l2 b1 b2 b3 b4 b5
[N]
WT-3000-T 3 01:01 52 12 12 26 / 41 / 59 / 74 26 48 38 60 42 4
WT-4000-T 6 01:01 60 14 14 26 / 47 / 65 / 80 26 56 46 83 50 10 Following the idea of "Hygienic Design" the angular drive
is available as maintenance-free and washable stainless
105) Gear ratio
steel/polymer system.
● Max. drive torque 3Nm
● Flexible adjusting to your installation with continuously ● Single parts made of stainless steel
variable adjustment (can be oscillated 360°) Angular drive with ● Easy to clean/rinse with water
®
● Max. drive torque 3Nm hand wheel (optional) ● Compatible with drylin SHTC-20-EWM-HYD
● Clamping using set screw u Page 531
la
● Ø 12mm h7 output shaft d1 ● Position indicator, lead screw clamp and hand wheel
available u Page 618
d1 d1 b3 b3 b3 Depending on the design, an adapter plate is l2
d1
used for connection to the linear system
b3
L2 L2 L2 sg sg sg
d3
b2
AW AW AW b2 b2 b2 d4 kt

b4 b4 b4 AW AW AW 360° 360° 360° d2
b1 b1 b1 b1
Dimensions [mm] Dimensions [mm]

Part No. l 105) AW b1 b2 b3 b4 L2 d1 sg Part No. l 105) la kt b1 b2 b3 d4 I2 d1 d2 d3 sg
WT-3000 | 3100 | 3500 1:1 40 48 42 28 20 26 12 M4 WT-1100 1:1 84 4.5 65 92 8 12 26 14 25 30 M4
WT-3600 | 3700 1:1 40 48 42 28 30 26 12 M4 105) Gear ratio
ASEAN 09/2023 ASEAN 09/2023
105) Gear ratio
