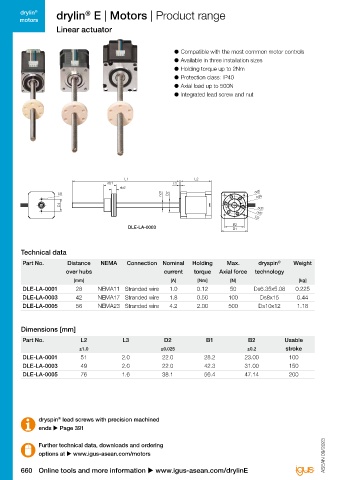

drylin drylin E | Motors | Product range drylin E | Motors | Product range drylin
®
®
motors motors
Linear actuator Linear actuator with encoder

● Compatible with the most common motor controls ● Compatible with the most common motor controls
● Available in three installation sizes ● Available in several installation sizes
● Holding torque up to 2Nm ● Holding torque up to 2Nm
● Protection class: IP40 ● Protection class: IP40
● Axial load up to 500N ● Axial load up to 500N
● Integrated lead screw and nut ● Integrated lead screw and nut

L1 L2 L1 L2 L6
nb1 L3 nb1 L3
nb2 nb2 nd5
D5 nd1 D2 nd5 nd1 D2 nd4
nd4
D4 nd3
nd3
nd2
nd2
D3 D3
B2 B2
DLE-LA-0003 B1 DLE-LA-0004 B1 B3

Technical data Technical data

Part No. Distance NEMA Connection Nominal Holding Max. dryspin Weight Part No. Distance NEMA Connection Nominal Holding Max. dryspin Weight
®
®
over hubs current torque Axial force technology over hubs current torque Axial force technology
[mm] [A] [Nm] [N] [kg] [mm] [A] [Nm] [N] [kg]
DLE-LA-0001 28 NEMA11 Stranded wire 1.0 0.12 50 Ds6.35x5.08 0.225 DLE-LA-0002 28 NEMA11 Stranded wire 1.0 0.12 50 Ds6.35x5.08 0.245
DLE-LA-0003 42 NEMA17 Stranded wire 1.8 0.50 100 Ds8x15 0.44 DLE-LA-0004 42 NEMA17 Stranded wire 1.8 0.50 100 Ds8x15 0.46
DLE-LA-0005 56 NEMA23 Stranded wire 4.2 2.00 500 Ds10x12 1.18 DLE-LA-0006 56 NEMA23 Stranded wire 4.2 2.00 500 Ds10x12 1.20

Dimensions [mm] Dimensions [mm]

Part No. L2 L3 D2 B1 B2 Usable Part No. L2 L3 L6 D2 B1 B2 Usable
±1.0 ±0.025 ±0.2 stroke ±1.0 ±0.025 ±0.2 stroke
DLE-LA-0001 51 2.0 22.0 28.2 23.00 100 DLE-LA-0002 51 2.0 15.2 22.0 28.2 23.00 100
DLE-LA-0003 49 2.0 22.0 42.3 31.00 150 DLE-LA-0004 49 2.0 16.0 22.0 42.3 31.00 150
DLE-LA-0005 76 1.6 38.1 56.4 47.14 200 DLE-LA-0006 76 1.6 16.0 38.1 56.4 47.14 200

®
®
dryspin lead screws with precision machined dryspin lead screws with precision machined
ends u Page 391 ends u Page 391

Further technical data, downloads and ordering Further technical data, downloads and ordering
options at u www.igus-asean.com/motors ASEAN 09/2023 ASEAN 09/2023 options at u www.igus-asean.com/motors
