drylin drylin | Motor control system | D7/8/9 dryve New drylin | Motor control system | D5/6 dryve New drylin
®
®
motors motors
For stepper motors Drives for DC motors

Example image
D5 dryve D6 dryve

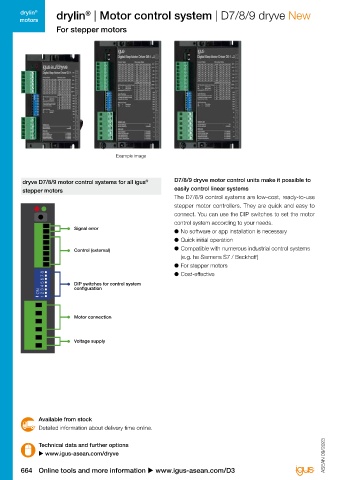

dryve D7/8/9 motor control systems for all igus D7/8/9 dryve motor control units make it possible to Terminal assignments ● Control DC motors
®
®
stepper motors easily control linear systems ● Suitable for all igus DC motors
The D7/8/9 control systems are low-cost, ready-to-use ● Motor speed can be controlled via PWM
stepper motor controllers. They are quick and easy to ● Easy installation of switch cabinet on TS35 rail
connect. You can use the DIP switches to set the motor Power
control system according to your needs.
Signal error POS
● No software or app installation is necessary
● Quick initial operation NEG
Control (external) ● Compatible with numerous industrial control systems + X1.1
DC motor
(e.g. he Siemens S7 / Beckhoff) DC-Motor – X1.2 X1
● For stepper motors 12 V - 24 V X2.1
Cost-effective
12345678 DIP switches for control system Power Supply 0 V X2.2 X2
●
Power supply
ON configuration Positive 5 V - 24 V X3.1
Positive
Negative
Negative 5 V - 24 V X3.2
Run
Run 5 V - 24 V X3.3 X3
Ground
Motor connection Ground 0 V X3.4

Voltage supply

Technical data [mm]
Part No. Type Motor current Nominal voltage Protection class Weight
(duration/peak)
[A] [V] [g]
D5 New Cased version 10/30 12-24 IP20 130
D6 New Printed circuit board version 10/30 12-24 IP00 20

Available from stock Available from stock
Detailed information about delivery time online. Detailed information about delivery time online.

Technical data and further options Technical data and further options
u www.igus-asean.com/dryve ASEAN 09/2023 ASEAN 09/2023 u www.igus-asean.com/dryve

664 Online tools and more information u www.igus-asean.com/D3 3D CAD files, prices and delivery time online u www.igus-asean.com/dryve 665
