P. 668
drylin drylin | Motor control system | Accessories New drylin | Motors | Accessories drylin
®
®
®
®
motors motors

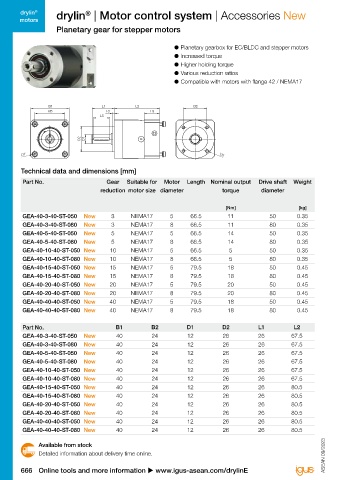

Planetary gear for stepper motors Planetary gear for stepper motors
● Planetary gearbox for EC/BLDC and stepper motors ● Planetary gearbox for EC/BLDC and stepper motors
● Increased torque ● Increased torque
● Higher holding torque ● Higher holding torque
● Various reduction ratios ● Various reduction ratios
● Compatible with motors with flange 42 / NEMA17 ● Compatible with motors with flange 56 / NEMA23
and with flange 60 / NEMA24
B1 B1 B1 L1 L1 L1L2 L2 L2 B2 B2 B2 B1 B1 B1 L1 L1 L1L2 L2 L2 B2 B2 B2
B5 B5 B5 L3 L3 L3 L9 L9 L9 B5 B5 B5 L3 L3 L3 L9 L9 L9
L5 L5 L5 L5 L5 L5
D2 D1 D2 D2 D1 D1 D2 D1 D2 D2 D1 D1
D7 D7 D7 D3 D3 D3 D7 D7 D7 D3 D3 D3
Technical data and dimensions [mm] Technical data and dimensions [mm]
Part No. Gear Suitable for Motor Length Nominal output Drive shaft Weight Part No. Gear reduction Suitable for Nominal output Drive shaft Weight
reduction motor size diameter torque diameter motor size torque diameter
[Nm] [kg]
[Nm] [kg] GEA-60-3-60-ST-063 3 NEMA23 28 63 0.88
GEA-40-3-40-ST-050 New 3 NEMA17 5 66.5 11 50 0.35 GEA-60-3-60-ST-080 3 NEMA24/23 28 80 0.88
GEA-40-3-40-ST-080 New 3 NEMA17 8 66.5 11 80 0.35 GEA-60-5-60-ST-063 5 NEMA23 40 63 0.89
GEA-40-5-40-ST-050 New 5 NEMA17 5 66.5 14 50 0.35 GEA-60-5-60-ST-080 5 NEMA24/23 40 80 0.89
GEA-40-5-40-ST-080 New 5 NEMA17 8 66.5 14 80 0.35 GEA-60-10-60-ST-063 10 NEMA23 15 63 0.90
GEA-40-10-40-ST-050 New 10 NEMA17 5 66.5 5 50 0.35 GEA-60-10-60-ST-080 10 NEMA24/23 15 80 0.90
GEA-40-10-40-ST-080 New 10 NEMA17 8 66.5 5 80 0.35 GEA-60-15-60-ST-063 15 NEMA23 44 63 1.05
GEA-40-15-40-ST-050 New 15 NEMA17 5 79.5 18 50 0.45 GEA-60-15-60-ST-080 15 NEMA24/23 44 80 1.05
GEA-40-15-40-ST-080 New 15 NEMA17 8 79.5 18 80 0.45 GEA-60-20-60-ST-063 20 NEMA23 44 63 1.10
GEA-40-20-40-ST-050 New 20 NEMA17 5 79.5 20 50 0.45 GEA-60-20-60-ST-080 20 NEMA24/23 44 80 1.10
GEA-40-20-40-ST-080 New 20 NEMA17 8 79.5 20 80 0.45 GEA-60-40-60-ST-063 40 NEMA23 40 63 1.10
GEA-40-40-40-ST-050 New 40 NEMA17 5 79.5 18 50 0.45 GEA-60-40-60-ST-080 40 NEMA24 40 80 1.10
GEA-40-40-40-ST-080 New 40 NEMA17 8 79.5 18 80 0.45
Part No. B1 B2 D1 D2 L1 L2 Part No. B1 B2 D1 D2 L1 L2
GEA-40-3-40-ST-050 New 40 24 12 26 26 67.5 GEA-60-3-60-ST-063 60 36.7 14 40 35 71
GEA-40-3-40-ST-080 New 40 24 12 26 26 67.5 GEA-60-3-60-ST-080 60 36.7 14 40 35 71
GEA-40-5-40-ST-050 New 40 24 12 26 26 67.5 GEA-60-5-60-ST-063 60 36.7 14 40 35 71
GEA-40-5-40-ST-080 New 40 24 12 26 26 67.5 GEA-60-5-60-ST-080 60 36.7 14 40 35 71
GEA-40-10-40-ST-050 New 40 24 12 26 26 67.5 GEA-60-10-60-ST-063 60 36.7 14 40 35 71
GEA-40-10-40-ST-080 New 40 24 12 26 26 67.5 GEA-60-10-60-ST-080 60 36.7 14 40 35 71
GEA-40-15-40-ST-050 New 40 24 12 26 26 80.5 GEA-60-15-60-ST-063 60 36.7 14 40 35 84
GEA-40-15-40-ST-080 New 40 24 12 26 26 80.5 GEA-60-15-60-ST-080 60 36.7 14 40 35 84
GEA-40-20-40-ST-050 New 40 24 12 26 26 80.5 GEA-60-20-60-ST-063 60 36.7 14 40 35 84
GEA-40-20-40-ST-080 New 40 24 12 26 26 80.5 GEA-60-20-60-ST-080 60 36.7 14 40 35 84
GEA-40-40-40-ST-050 New 40 24 12 26 26 80.5 GEA-60-40-60-ST-063 60 36.7 14 40 35 84
GEA-40-40-40-ST-080 New 40 24 12 26 26 80.5 GEA-60-40-60-ST-080 60 36.7 14 40 35 84
Available from stock Available from stock
Detailed information about delivery time online. ASEAN 09/2023 ASEAN 09/2023 Detailed information about delivery time online.
