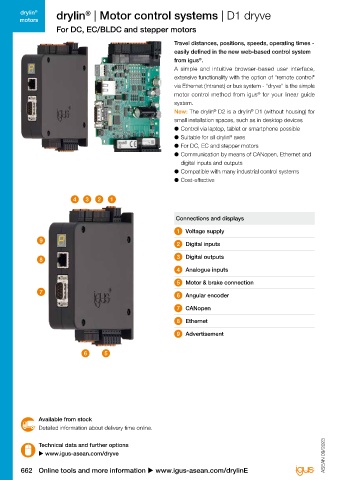

drylin drylin | Motor control systems | D1 dryve drylin | Motor control systems | D3 dryve drylin
®
®
®
motors motors
For DC, EC/BLDC and stepper motors For DC motors
Travel distances, positions, speeds, operating times - D3 dryve motor control unit makes it possible to
easily defined in the new web-based control system easily control linear systems
from igus . The D3 dryve is a cost-effective control system for direct-
®
A simple and intuitive browser-based user interface, current motors and is ready to use immediately. It can be
extensive functionality with the option of "remote control" connected quickly and is very easy to use – without any
via Ethernet (Intranet) or bus system - "dryve" is the simple additional connection work. Buttons and rotary controls
motor control method from igus for your linear guide on the housing make it possible to control linear carriages
®
system. without a PC, laptop or tablet. Different speeds as well as
New: The drylin D2 is a drylin D1 (without housing) for starting modes can be set.
®
®
small installation spaces, such as in desktop devices ● Easy to use, quick to connect
● Control via laptop, tablet or smartphone possible ● Controls on the device make it possible to activate
®
● Suitable for all drylin axes linear carriages, for example (anticlockwise/clockwise
● For DC, EC and stepper motors operation, speed, step mode or continuous operation)
● Communication by means of CANopen, Ethernet and ● Different speeds and starting modes possible
digital inputs and outputs ● Can be combined with switches or joysticks
● Compatible with many industrial control systems ● Cost-effective, everything necessary and immediately
● Cost-effective ready for use for e. g. control on a camera slider

4 3 2 1

Connections and displays D3 dryve motor control system for all igus DC motors
®
1 Voltage supply
LED1
9 Limit switch LEFT
2 Digital inputs

8 3 Digital outputs LED2 1 ON Selector switch
2
Limit switch RIGHT 4 operating mode
3
4 Analogue inputs
S1 Pushbutton left
5 Motor & brake connection LED3
7 Function S1 Pushbutton right
6 Angular encoder OK DEFECT

7 CANopen LED4
Motor running
8 Ethernet
9 Advertisement LED5
Current limit P1 Potentiometer
for force limitation
0-100%
6 5
LED6
Overcurrent switch-
off
P2 Potentiometer
for desired speed
LED7 0-100%
Mode change

Available from stock Available from stock
Detailed information about delivery time online. Detailed information about delivery time online.

Technical data and further options Technical data and further options
u www.igus-asean.com/dryve ASEAN 09/2023 ASEAN 09/2023 u www.igus-asean.com/dryve
