drylin E drylin drive technology | Accessories | Product range drylin drive technology | Accessories | Product range drylin E
®
®
®
accessories s1 accessories
s2

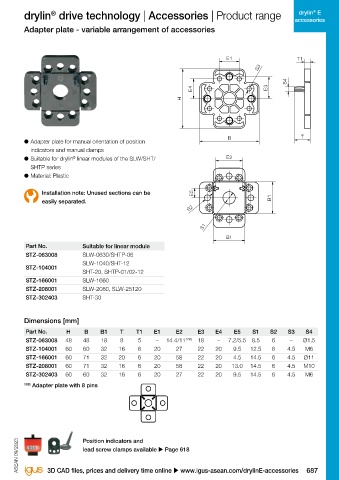

Clamping elements for linear modules and toothed belt axes Adapter plate - variable arrangement of accessories
s1
s2 t E1 E2
H T1
S3

X t S4
H E4 E3
E5
H B1

B X S2

S1

Fixing clamps offer a safe fastening of the drylin linear axes B ● Adapter plate for manual orientation of position B T B1
®
on aluminium profiles. Designed for the drylin W high- indicators and manual clamps
®
E1
profile rail, the clamps can be inserted into the slots of the ● Suitable for drylin linear modules of the SLW/SHT/ T1 E2
®
rail and used to fix the axis in place. SHTP series S3
● Secure mounting A ● Material: Plastic
● Fully adjustable E3 S4
E4
● For drylin SAW linear modules and ZLW toothed belt Installation note: Unused sections can be E5
®
axes H easily separated. B1
A
● For drylin WSX high-profile rails S2
®
S1
B T B1
Part No. Suitable for toothed belt axis Part No. Suitable for linear module
ZTZ-063006 ZLW-0630 STZ-063008 SLW-0630/SHTP-06
75.40-ZLW ZLW-1040 SLW-1040/SHT-12
75.40-ZLW ZLW-1080 STZ-104001 SHT-20, SHTP-01/02-12
75.50-ZLW ZLW-1660 STZ-166001 SLW-1660
STZ-208001 SLW-2080, SLW-25120
STZ-302403 SHT-30

Dimensions [mm] Dimensions [mm]

Part No. B A H X s1 s2 t Part No. H B B1 T T1 E1 E2 E3 E4 E5 S1 S2 S3 S4
ZTZ-063006 16.5 15 9.0 6.0 9 5.5 4 STZ-063008 48 48 18 8 5 – 14.4/11 106) 18 – 7.2/5.5 8.5 6 – Ø1.5
75.40-ZLW 27.65 40 8.7 8.6 – 6.4 – STZ-104001 60 60 32 16 6 20 27 22 20 9.5 12.5 6 4.5 M6
75.50-ZLW 37.25 40 14.4 11.0 – 9.0 – STZ-166001 60 71 32 20 6 20 58 22 20 4.5 14.5 6 4.5 Ø11
STZ-208001 60 71 32 16 6 20 58 22 20 13.0 14.5 6 4.5 M10
STZ-302403 60 60 32 16 6 20 27 22 20 9.5 14.5 6 4.5 M6

106) Adapter plate with 8 pins

ASEAN 09/2023 ASEAN 09/2023 Position indicators and
lead screw clamps available u Page 618

686 Online tools and more information u www.igus-asean.com/drylinE-accessories 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinE-accessories 687
