drylin E
®
drylin E drylin drive technology | Accessories | Product range drylin drive technology | Accessories | Product range B1 ®
®
accessories accessories
H

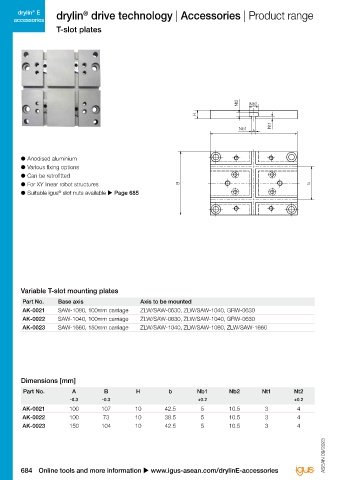

T-slot plates Slot nuts for mounting H1
G
B
B1
A A
B
B1 G
B
Nt2 Nb2 B1
A H
H
G
Nt1
Nb1 H
A
H1
H
NOR-20602 NOR-20605
®
● Anodised aluminium For the drylin W high-profile rail, slot nuts offer variable G
● Various fixing options ways of fastening sensors and proximity switches, for B
● Can be retrofitted example. The robust profile rail is the basis of SAW linear R
● For XY linear robot structures B b modules as well as ZLW toothed belt axes and has up to A
®
● Suitable igus slot nuts available u Page 685 5 T-slots for mounting slot nuts. Moreover, slot nuts are A
used as a fastening option in the case of drylin Q linear
®
carriages. Roll-in slot nuts are available for retrofitting in G
closed T-slots.
● Fully adjustable H
● Ideal for drylin limit and reference switches
®
®
● Suitable for T-slots of the drylin WSX high-profile rail NOR-20613
● Secure retention
● Can be retrofitted

Variable T-slot mounting plates Nt2 Nb2
Part No. Base axis Axis to be mounted H Part No. Suitable for rail profile Linear module
AK-0021 SAW-1080, 100mm carriage ZLW/SAW-0630, ZLW/SAW-1040, GRW-0630 Nt1 NOR-20602 WSX-06-30 SAW-0630, SAWC-0630, ZLW-0630
Nb1
AK-0022 SAW-1040, 100mm carriage ZLW/SAW-0630, ZLW/SAW-1040, GRW-0630 NOR-20602 WSX-10-40 SAW-1040, SAWC-1040, ZLW-1040
AK-0023 SAW-1660, 150mm carriage ZLW/SAW-1040, ZLW/SAW-1080, ZLW/SAW-1660 NOR-20602 WSX-10-80 SAW-1080, ZLW-1080
NOR-20602 AWMQ-20 QWE-01-20
NOR-20602 WSX-16-60 SAW-1660, ZLW-1660 (lateral grooves)
NOR-20605 WSX-16-60 SAW-1660, ZLW-1660 (lower groove)
NOR-20615 AWMQ-12 QWE-01-12

Dimensions [mm] Dimensions [mm]

Part No. A B H b Nb1 Nb2 Nt1 Nt2 Part No. A B B1 H H1 G R
-0.3 -0.3 +0.2 +0.2 NOR-20602 9.0 19.0 4 4 – M5 –
AK-0021 100 107 10 42.5 5 10.5 3 4 NOR-20605 15.0 15.0 10 12 6 M8 –
AK-0022 100 73 10 38.5 5 10.5 3 4 NOR-20613 132) 5.2 9.5 – 4 – M4 2.5
AK-0023 150 104 10 42.5 5 10.5 3 4 132) Optionally available: roll-in slot nut for retrofitting

ASEAN 09/2023 ASEAN 09/2023

684 Online tools and more information u www.igus-asean.com/drylinE-accessories 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinE-accessories 685
