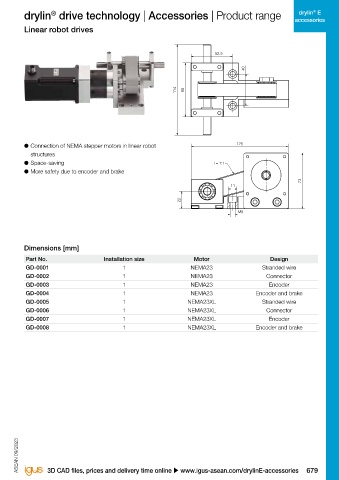

drylin E drylin E | Accessories | Product range drylin drive technology | Accessories | Product range drylin E
®
®
accessories M8 accessories
Brake resistors Linear robot drives
● Braking resistors for safety at high speeds 52.5
● Compact
● Easy to connect 40

114 68

Example image

● Connection of NEMA stepper motors in linear robot 125
structures
● Space-saving i = 1:1
● More safety due to encoder and brake
73
11

22

M8

52.5
Technical data Dimensions [mm]
Part No. Installation size Performance class Resistance value Weight Part No. Installation size Motor 40 Design
[W] [Ω] [kg] GD-0001 1 NEMA23 Stranded wire
DLE-BR-50-18R NEMA17 50 18.0 0.030 GD-0002 1 NEMA23 Connector
DLE-BR-75-4R7 NEMA23 75 4.7 0.085 GD-0003 1 114 68 NEMA23 Encoder
DLE-BR-100-3R3 NEMA24 100 3.3 0.115 GD-0004 1 NEMA23 Encoder and brake
DLE-BR-100-2R7 NEMA34 100 2.7 0.115 GD-0005 1 NEMA23XL Stranded wire
GD-0006 1 NEMA23XL Connector
GD-0007 1 NEMA23XL Encoder
Dimensions [mm] GD-0008 1 NEMA23XL Encoder and brake

Part No. L A H C L2 L6 B1 B2 H1 H2
max. max. max. max.
±0.5 ±0.5 ±0.5
DLE-BR-50-18R 50.1 72.5 30 17 50.1 11.2 12.8 8.6 14.0 3
DLE-BR-75-4R7 48.9 71.0 48 26 48.9 11.1 26.0 11.0 22.0 4
DLE-BR-100-3R3 65.4 87.5 48 26 65.4 11.1 26.0 11.0 4.0 4
DLE-BR-100-2R7 65.4 87.5 48 26 65.4 11.1 26.0 11.0 4.0 4
