drylin E drylin E | Accessories | Product range drylin E | Accessories | Product range drylin E
®
®
accessories accessories

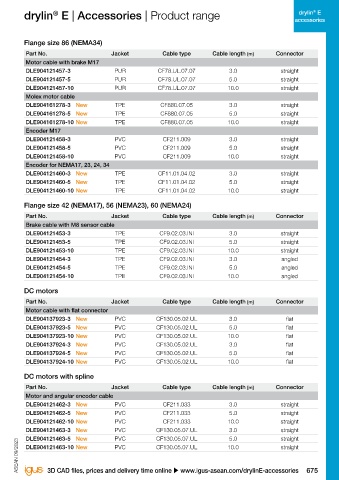

Connecting cables for NEMA stepper motors with metric connectors
Flange size 86 (NEMA34)
The ideal complement to the drylin product range provides Part No. Jacket Cable type Cable length [m] Connector
®
chainflex connection cables. Motor cable with brake M17
®
● Suitable for energy chains DLE904121457-3 PUR CF78.UL.07.07 3.0 straight
● Shielded and oil-resistant DLE904121457-5 PUR CF78.UL.07.07 5.0 straight
● Straight and angled connectors DLE904121457-10 PUR CF78.UL.07.07 10.0 straight
Molex motor cable
DLE904161278-3 New TPE CF880.07.05 3.0 straight
DLE904161278-5 New TPE CF880.07.05 5.0 straight
DLE904161278-10 New TPE CF880.07.05 10.0 straight
Encoder M17
DLE904121458-3 PVC CF211.009 3.0 straight
DLE904121458-5 PVC CF211.009 5.0 straight
DLE904121458-10 PVC CF211.009 10.0 straight
Encoder for NEMA17, 23, 24, 34
DLE904121460-3 New TPE CF11.01.04.02 3.0 straight
DLE904121460-5 New TPE CF11.01.04.02 5.0 straight
DLE904121460-10 New TPE CF11.01.04.02 10.0 straight

Flange size 28 (NEMA11), 42 (NEMA17), 56 (NEMA23), 60 (NEMA24) Flange size 42 (NEMA17), 56 (NEMA23), 60 (NEMA24)

Part No. Jacket Cable type Cable length [m] Connector Part No. Jacket Cable type Cable length [m] Connector
Motor cable M12 Brake cable with M8 sensor cable
DLE904121451-3 TPE CF9.03.05.INI 3.0 straight DLE904121453-3 TPE CF9.02.03.INI 3.0 straight
DLE904121451-5 TPE CF9.03.05.INI 5.0 straight DLE904121453-5 TPE CF9.02.03.INI 5.0 straight
DLE904121451-10 TPE CF9.03.05.INI 10.0 straight DLE904121453-10 TPE CF9.02.03.INI 10.0 straight
DLE904121452-3 TPE CF9.03.05.INI 3.0 angled DLE904121454-3 TPE CF9.02.03.INI 3.0 angled
DLE904121452-5 TPE CF9.03.05.INI 5.0 angled DLE904121454-5 TPE CF9.02.03.INI 5.0 angled
DLE904121452-10 TPE CF9.03.05.INI 10.0 angled DLE904121454-10 TPE CF9.02.03.INI 10.0 angled
Motor cable JST
DLE904121461-3 New TPE CF9.03.05.INI 3.0 straight DC motors
DLE904121461-5 New TPE CF9.03.05.INI 5.0 straight Part No. Jacket Cable type Cable length [m] Connector
DLE904121461-10 New TPE CF9.03.05.INI 10.0 straight Motor cable with flat connector
Encoder M12 DLE904137923-3 New PVC CF130.05.02.UL 3.0 flat
DLE904121455-3 PVC CF240.02.08 3.0 straight DLE904137923-5 New PVC CF130.05.02.UL 5.0 flat
DLE904121455-5 PVC CF240.02.08 5.0 straight DLE904137923-10 New PVC CF130.05.02.UL 10.0 flat
DLE904121455-10 PVC CF240.02.08 10.0 straight DLE904137924-3 New PVC CF130.05.02.UL 3.0 flat
DLE904121456-3 PVC CF240.02.08 3.0 angled DLE904137924-5 New PVC CF130.05.02.UL 5.0 flat
DLE904121456-5 PVC CF240.02.08 5.0 angled DLE904137924-10 New PVC CF130.05.02.UL 10.0 flat
DLE904121456-10 PVC CF240.02.08 10.0 angled
Encoder JST NEMA11 DC motors with spline
DLE904121459-3 New TPE CF11.01.04.02 3.0 straight Part No. Jacket Cable type Cable length [m] Connector
DLE904121459-5 New TPE CF11.01.04.02 5.0 straight Motor and angular encoder cable
DLE904121459-10 New TPE CF11.01.04.02 10.0 straight DLE904121462-3 New PVC CF211.033 3.0 straight
DLE904121462-5 New PVC CF211.033 5.0 straight
DLE904121462-10 New PVC CF211.033 10.0 straight
DLE904121463-3 New PVC CF130.05.07.UL 3.0 straight
CF130.05.07.UL
5.0
PVC
DLE904121463-5 New
straight
ASEAN 09/2023 ASEAN 09/2023 DLE904121463-10 New PVC CF130.05.07.UL 10.0 straight
674 Online tools and more information u www.igus-asean.com/drylinE-accessories 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinE-accessories 675
