drylin E drylin E | Accessories | Product range drylin E | Accessories | Product range drylin E
®
®
accessories accessories

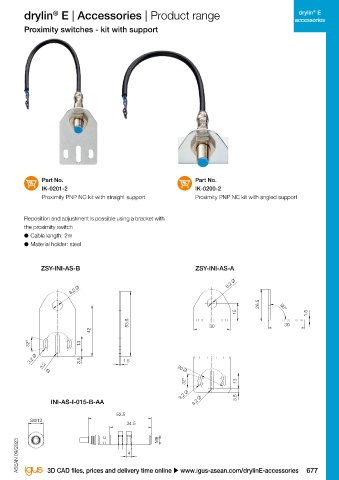

Proximity switches - limit and reference switches Proximity switches - kit with support
The compact and easy assembly of the proximity switches
represent a logical extension of the kit approach for the
drylin range. The plastic housing makes the proximity
®
switches, which can be used as limit, position or reference
switches, particularly light and tough.

Technical data Pin assignment
Sensor/actuator Unit Proximity M8 3-pin Proximity switch cable
Operating voltage [VDC] 10…30 switch
Max. trigger current [mA] 100 PIN Signal PIN Colour
Ambient temperature [°C] -25…+70 1 + 1 brown
Trigger distance [SN] 2.5 3 – 3 blue
Protection class IP67 4 load 4 black
Connector M8
4 4
1 3 3 1
20-30mm of extra stroke length is required for each
limit reference switch. Part No. Part No.
IK-0201-2 IK-0200-2
axis Part No. Matching cables are added by including the following Proximity PNP NC kit with straight support Proximity PNP NC kit with angled support
Proximity switch kit attachments:
Opener Closer
SAW-0630 IK-0001 IK-0002 Reposition and adjustment is possible using a bracket with
SAW-1040 IK-0001 IK-0002 the proximity switch
SAW-1660 IK-0003 IK-0004 ● Cable length: 2m
SLW-BB-0630 – – ● Material holder: steel
SLW-BB-1040 IK-0006 IK-0017
SLW-BB-1080 IK-0007 IK-0018
SLW-BB-1660 IK-0008 IK-0019 ZSY-INI-AS-B ZSY-INI-AS-A
SLW-BB-2080 IK-0009 IK-0020 A proximity switch kit for SAW & ZLW includes a 8.2 Ø
SHT-BB-12 IK-0011 IK-0022 proximity switch, a bracket and mounting screws 8.2 Ø
SHT-BB-20 IK-0012 IK-0023
SHT-BB-30 – – 26.5 90°
SLW-1040-AL IK-0006 IK-0017 15 1.5
SLW-1080 IK-0007 IK-0018 53.5 30 30
SLW-1660 IK-0008 IK-0019 42
SLW-2080 IK-0009 IK-0020 32° 13
SHT-12 IK-0011 IK-0022
SHT-20 IK-0012 IK-0023 3.2 Ø 1.5
SHT-30 – – 3.2 3.5 20 Ø
ZLW-0630-B IK-0001 IK-0002 A proximity switch kit for SLW & SHT includes a Ø
ZLW-0630-S IK-0001 IK-0002 proximity switch, two spacers and mounting screws. 32° 13
ZLW-1040-B IK-0001 IK-0002 3.2 Ø
ZLW-1040-S IK-0001 IK-0002 INI-AS-I-015-B-AA 3.2 Ø 3.5
ZAW-1040-B IK-0001 IK-0002
ZAW-1040-S IK-0001 IK-0002 SW13 52.5
ZLW-1660-S IK-0003 IK-0004 34.5

ASEAN 09/2023 ASEAN 09/2023 4 M8
