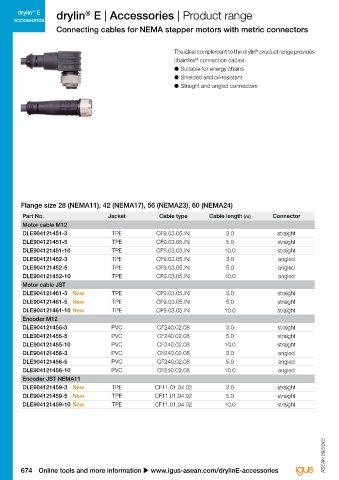

Connecting cables for NEMA stepper motors with metric connectors
Flange size 86 (NEMA34)
The ideal complement to the drylin product range provides Part No. Jacket Cable type Cable length [m] Connector
®
chainflex connection cables. Motor cable with brake M17
®
● Suitable for energy chains DLE904121457-3 PUR CF78.UL.07.07 3.0 straight
● Shielded and oil-resistant DLE904121457-5 PUR CF78.UL.07.07 5.0 straight
● Straight and angled connectors DLE904121457-10 PUR CF78.UL.07.07 10.0 straight
Molex motor cable
DLE904161278-3 New TPE CF880.07.05 3.0 straight
DLE904161278-5 New TPE CF880.07.05 5.0 straight
DLE904161278-10 New TPE CF880.07.05 10.0 straight
Encoder M17
DLE904121458-3 PVC CF211.009 3.0 straight
DLE904121458-5 PVC CF211.009 5.0 straight
DLE904121458-10 PVC CF211.009 10.0 straight
Encoder for NEMA17, 23, 24, 34
DLE904121460-3 New TPE CF11.01.04.02 3.0 straight
DLE904121460-5 New TPE CF11.01.04.02 5.0 straight
DLE904121460-10 New TPE CF11.01.04.02 10.0 straight

Flange size 28 (NEMA11), 42 (NEMA17), 56 (NEMA23), 60 (NEMA24) Flange size 42 (NEMA17), 56 (NEMA23), 60 (NEMA24)

Part No. Jacket Cable type Cable length [m] Connector Part No. Jacket Cable type Cable length [m] Connector
Motor cable M12 Brake cable with M8 sensor cable
DLE904121451-3 TPE CF9.03.05.INI 3.0 straight DLE904121453-3 TPE CF9.02.03.INI 3.0 straight
DLE904121451-5 TPE CF9.03.05.INI 5.0 straight DLE904121453-5 TPE CF9.02.03.INI 5.0 straight
DLE904121451-10 TPE CF9.03.05.INI 10.0 straight DLE904121453-10 TPE CF9.02.03.INI 10.0 straight
DLE904121452-3 TPE CF9.03.05.INI 3.0 angled DLE904121454-3 TPE CF9.02.03.INI 3.0 angled
DLE904121452-5 TPE CF9.03.05.INI 5.0 angled DLE904121454-5 TPE CF9.02.03.INI 5.0 angled
DLE904121452-10 TPE CF9.03.05.INI 10.0 angled DLE904121454-10 TPE CF9.02.03.INI 10.0 angled
Motor cable JST
DLE904121461-3 New TPE CF9.03.05.INI 3.0 straight DC motors
DLE904121461-5 New TPE CF9.03.05.INI 5.0 straight Part No. Jacket Cable type Cable length [m] Connector
DLE904121461-10 New TPE CF9.03.05.INI 10.0 straight Motor cable with flat connector
Encoder M12 DLE904137923-3 New PVC CF130.05.02.UL 3.0 flat
DLE904121455-3 PVC CF240.02.08 3.0 straight DLE904137923-5 New PVC CF130.05.02.UL 5.0 flat
DLE904121455-5 PVC CF240.02.08 5.0 straight DLE904137923-10 New PVC CF130.05.02.UL 10.0 flat
DLE904121455-10 PVC CF240.02.08 10.0 straight DLE904137924-3 New PVC CF130.05.02.UL 3.0 flat
DLE904121456-3 PVC CF240.02.08 3.0 angled DLE904137924-5 New PVC CF130.05.02.UL 5.0 flat
DLE904121456-5 PVC CF240.02.08 5.0 angled DLE904137924-10 New PVC CF130.05.02.UL 10.0 flat
DLE904121456-10 PVC CF240.02.08 10.0 angled
Encoder JST NEMA11 DC motors with spline
DLE904121459-3 New TPE CF11.01.04.02 3.0 straight Part No. Jacket Cable type Cable length [m] Connector
DLE904121459-5 New TPE CF11.01.04.02 5.0 straight Motor and angular encoder cable
DLE904121459-10 New TPE CF11.01.04.02 10.0 straight DLE904121462-3 New PVC CF211.033 3.0 straight
DLE904121462-5 New PVC CF211.033 5.0 straight
DLE904121462-10 New PVC CF211.033 10.0 straight
DLE904121463-3 New PVC CF130.05.07.UL 3.0 straight
CF130.05.07.UL
5.0
PVC
DLE904121463-5 New
straight
ASEAN 09/2023 ASEAN 09/2023 DLE904121463-10 New PVC CF130.05.07.UL 10.0 straight
