drylin E drylin drive technology | Accessories | Product range drylin drive technology | Accessories | Product range drylin E
®
®
®
®
accessories accessories

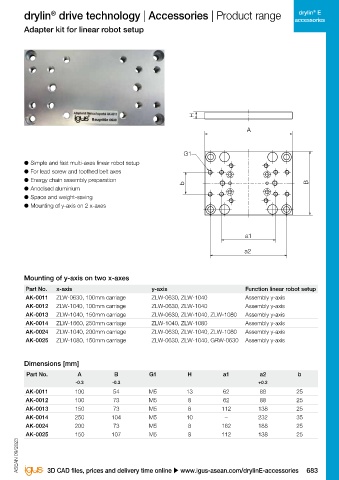

Mounting bracket for SAW linear modules and ZLW toothed belt axes Adapter kit for linear robot setup b B

a1

a2

A
B B

C1 C1 H H
G1
For the assembly of drylin ZLW toothed belt axes ● Simple and fast multi-axes linear robot setup
®
®
● Available for drylin WSX / SAW(C) / ZLW ● For lead screw and toothed belt axes
Sizes 0630/1040/1080/1660 A C A C s s s1 s1 ● Energy chain assembly preparation b B
● Material: anodised aluminium ● Anodised aluminium
● Connection options: T-slots profile, linear axis/ ● Space and weight-saving
proximity switches s2 s2 ● Mounting of y-axis on 2 x-axes
● Multiple positions
● Quick mounting without drilling
● Including swivel-in slot nuts and screws for fastening
a1

a2
h h

b b
Mounting of y-axis on two x-axes
Part No. Suitable for Part No. x-axis y-axis Function linear robot setup
Rail profile Linear Toothed belt AK-0011 ZLW-0630, 100mm carriage ZLW-0630, ZLW-1040 Assembly y-axis
module axis AK-0012 ZLW-1040, 100mm carriage ZLW-0630, ZLW-1040 Assembly y-axis
AK-0037 WSX-06-30 SAW(C)-0630 ZLW-0630 AK-0013 ZLW-1040, 150mm carriage ZLW-0630, ZLW-1040, ZLW-1080 Assembly y-axis
AK-0038 WSX-10-40 SAW(C)-1040 ZLW-1040 AK-0014 ZLW-1660, 250mm carriage ZLW-1040, ZLW-1080 Assembly y-axis
AK-0039 WSX-10-80 SAW-1080 ZLW-1080 AK-0024 ZLW-1040, 200mm carriage ZLW-0630, ZLW-1040, ZLW-1080 Assembly y-axis
AK-0040 WSX-16-60 SAW-1660 ZLW-1660 AK-0025 ZLW-1080, 150mm carriage ZLW-0630, ZLW-1040, GRW-0630 Assembly y-axis

Dimensions [mm] Dimensions [mm]
Part No. A B H h b C C1 Øs s1 s2 Part No. A B G1 H a1 a2 b
AK-0037 60 70 20 12 30 40 50 M6 Ø10 5.5 -0.3 -0.3 +0.2
AK-0038 60 70 28 21 40 40 55 M6 Ø10 5.5 AK-0011 100 54 M5 13 62 88 25
AK-0039 60 104 28 21 74 40 90 M6 Ø10 5.5 AK-0012 100 73 M5 8 62 88 25
AK-0040 60 98 47 37 62 40 80 M8 Ø11 27 AK-0013 150 73 M5 8 112 138 25
AK-0014 250 104 M5 10 – 232 35
AK-0024 200 73 M5 8 162 188 25
AK-0025 150 107 M5 8 112 138 25
ASEAN 09/2023 ASEAN 09/2023

682 Online tools and more information u www.igus-asean.com/drylinE-accessories 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinE-accessories 683
