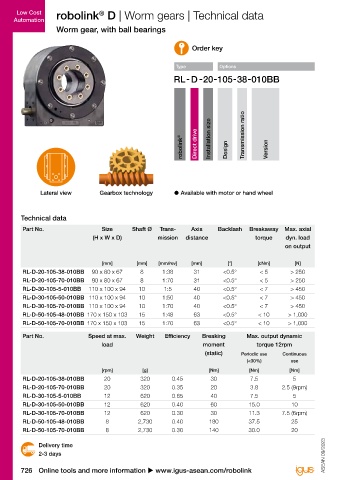

Low Cost robolink D | Worm gears | Technical data robolink D | Worm gears | Technical data Low Cost
Automation Automation
Worm gear, with ball bearings Worm gears, with ball bearings

Order key Order key

Type Options Type Options

robolink ® Direct drive Installation size Design Transmission ratio Version robolink ® Direct drive Installation size Design Transmission ratio Version

Lateral view Gearbox technology ● Available with motor or hand wheel Lateral view Gearbox technology ● Available with motor or hand wheel

Technical data Technical data

Part No. Size Shaft Ø Trans- Axis Backlash Breakaway Max. axial Part No. Size Shaft Ø Trans- Axis Backlash Breakaway Max. axial
(H x W x D) mission distance torque dyn. load (H x W x D) mission distance torque dyn. load
on output on output

[mm] [mm] [mm/rev] [mm] [°] [cNm] [N] [mm] [mm] [mm/rev] [mm] [°] [cNm] [N]
RL-D-20-105-38-010BB 90 x 80 x 67 8 1:38 31 <0.5° < 5 > 250 RL-D-20-106-38-010B5 90 x 80 x 67 8 1:38 31 <0.5° < 5 > 250
RL-D-20-105-70-010BB 90 x 80 x 67 8 1:70 31 <0.5° < 5 > 250 RL-D-20-106-70-010B5 90 x 80 x 67 8 1:70 31 <0.5° < 5 > 250
RL-D-30-105-5-010BB 110 x 100 x 94 10 1:5 40 <0.5° < 7 > 450 RL-D-30-106-5-010B5 110 x 100 x 94 10 1:5 40 <0.5° < 7 > 450
RL-D-30-105-50-010BB 110 x 100 x 94 10 1:50 40 <0.5° < 7 > 450 RL-D-30-106-50-010B5 110 x 100 x 94 10 1:50 40 <0.5° < 7 > 450
RL-D-30-105-70-010BB 110 x 100 x 94 10 1:70 40 <0.5° < 7 > 450 RL-D-30-106-70-010B5 110 x 100 x 94 10 1:70 40 <0.5° < 7 > 450
RL-D-50-105-48-010BB 170 x 150 x 103 15 1:48 63 <0.5° < 10 > 1,000 RL-D-50-106-48-010B5 170 x 150 x 103 15 1:48 63 <0.5° < 10 > 1,000
RL-D-50-105-70-010BB 170 x 150 x 103 15 1:70 63 <0.5° < 10 > 1,000 RL-D-50-106-70-010B5 170 x 150 x 103 15 1:70 63 <0.5° < 10 > 1,000

Part No. Speed at max. Weight Efficiency Breaking Max. output dynamic Part No. Speed at max. Weight Efficiency Breaking Max. output dynamic
load moment torque 12rpm load moment torque 12rpm
(static) Periodic use Continuous (static) Periodic use Continuous
(<30%) use (<30%) use
[rpm] [g] [Nm] [Nm] [Nm] [rpm] [g] [Nm] [Nm] [Nm]
RL-D-20-105-38-010BB 20 320 0.45 30 7.5 5 RL-D-20-106-38-010B5 20 280 0.45 30 7.5 5
RL-D-20-105-70-010BB 20 320 0.35 20 3.8 2.5 (9rpm) RL-D-20-106-70-010B5 20 280 0.35 20 3.8 2.5 (9rpm)
RL-D-30-105-5-010BB 12 620 0.65 40 7.5 5 RL-D-30-106-5-010B5 12 520 0.65 40 7.5 5
RL-D-30-105-50-010BB 12 620 0.40 60 15.0 10 RL-D-30-106-50-010B5 12 520 0.40 60 15.0 10
RL-D-30-105-70-010BB 12 620 0.30 30 11.3 7.5 (6rpm) RL-D-30-106-70-010B5 12 520 0.30 30 11.3 7.5 (6rpm)
RL-D-50-105-48-010BB 8 2,730 0.40 180 37.5 25 RL-D-50-106-48-010B5 8 2,140 0.40 180 37.5 25
RL-D-50-105-70-010BB 8 2,730 0.30 140 30.0 20 RL-D-50-106-70-010B5 8 2,140 0.30 140 30.0 20

Delivery time Delivery time
2-3 days ASEAN 09/2023 ASEAN 09/2023 2-3 days

726 Online tools and more information u www.igus-asean.com/robolink 3D CAD files, prices and delivery time online u www.igus-asean.com/robolink 727
