Low Cost robolink D | Worm gears | Technical data robolink D | Worm gears | Technical data Low Cost
Automation Automation

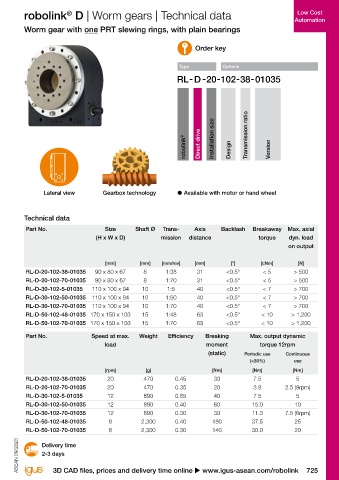

Worm gear with two PRT slewing rings, with plain bearings Worm gear with one PRT slewing rings, with plain bearings

Order key Order key

Type Options Type Options

robolink ® Direct drive Installation size Design Transmission ratio Version robolink ® Direct drive Installation size Design Transmission ratio Version

Lateral view Gearbox technology ● Available with motor or hand wheel Lateral view Gearbox technology ● Available with motor or hand wheel

Technical data Technical data

Part No. Size Shaft Ø Trans- Axis Backlash Breakaway Max. axial Part No. Size Shaft Ø Trans- Axis Backlash Breakaway Max. axial
(H x W x D) mission distance torque dyn. load (H x W x D) mission distance torque dyn. load
on output on output

[mm] [mm] [mm/rev] [mm] [°] [cNm] [N] [mm] [mm] [mm/rev] [mm] [°] [cNm] [N]
RL-D-20-101-38-01033 90 x 80 x 67 8 1:38 31 <0.5° < 5 > 500 RL-D-20-102-38-01035 90 x 80 x 67 8 1:38 31 <0.5° < 5 > 500
RL-D-20-101-70-01033 90 x 80 x 67 8 1:70 31 <0.5° < 5 > 500 RL-D-20-102-70-01035 90 x 80 x 67 8 1:70 31 <0.5° < 5 > 500
RL-D-30-101-5-01033 110 x 100 x 94 10 1:5 40 <0.5° < 7 > 700 RL-D-30-102-5-01035 110 x 100 x 94 10 1:5 40 <0.5° < 7 > 700
RL-D-30-101-50-01033 110 x 100 x 94 10 1:50 40 <0.5° < 7 > 700 RL-D-30-102-50-01035 110 x 100 x 94 10 1:50 40 <0.5° < 7 > 700
RL-D-30-101-70-01033 110 x 100 x 94 10 1:70 40 <0.5° < 7 > 700 RL-D-30-102-70-01035 110 x 100 x 94 10 1:70 40 <0.5° < 7 > 700
RL-D-50-101-48-01033 170 x 150 x 103 15 1:48 63 <0.5° < 10 > 1,200 RL-D-50-102-48-01035 170 x 150 x 103 15 1:48 63 <0.5° < 10 > 1,200
RL-D-50-101-70-01033 170 x 150 x 103 15 1:70 63 <0.5° < 10 > 1,200 RL-D-50-102-70-01035 170 x 150 x 103 15 1:70 63 <0.5° < 10 > 1,200

Part No. Speed at max. Weight Efficiency Breaking Max. output dynamic Part No. Speed at max. Weight Efficiency Breaking Max. output dynamic
load moment torque 12rpm load moment torque 12rpm
(static) Periodic use Continuous (static) Periodic use Continuous
(<30%) use (<30%) use
[rpm] [g] [Nm] [Nm] [Nm] [rpm] [g] [Nm] [Nm] [Nm]
RL-D-20-101-38-01033 20 610 0.45 30 7.5 5 RL-D-20-102-38-01035 20 470 0.45 30 7.5 5
RL-D-20-101-70-01033 20 610 0.35 20 3.8 2.5 (9rpm) RL-D-20-102-70-01035 20 470 0.35 20 3.8 2.5 (9rpm)
RL-D-30-101-5-01033 12 1,180 0.65 40 7.5 5 RL-D-30-102-5-01035 12 890 0.65 40 7.5 5
RL-D-30-101-50-01033 12 1,180 0.40 60 15.0 10 RL-D-30-102-50-01035 12 890 0.40 60 15.0 10
RL-D-30-101-70-01033 12 1,180 0.30 30 11.3 7.5 (6rpm) RL-D-30-102-70-01035 12 890 0.30 30 11.3 7.5 (6rpm)
RL-D-50-101-48-01033 8 3,050 0.40 180 37.5 25 RL-D-50-102-48-01035 8 2,300 0.40 180 37.5 25
RL-D-50-101-70-01033 8 3,050 0.30 140 30.0 20 RL-D-50-102-70-01035 8 2,300 0.30 140 30.0 20

Delivery time Delivery time
2-3 days ASEAN 09/2023 ASEAN 09/2023 2-3 days
