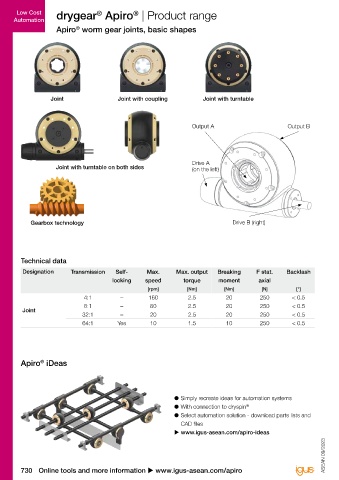

Low Cost drygear Apiro | Product range drygear Apiro | Product range Low Cost
®
Automation Automation
Apiro worm gear joints, basic shapes Apiro worm gear joints
®
®
D1

H1
A1

Joint Joint with coupling Joint with turntable L1 B1

L2

Output A Output B Technical data and dimensions [mm] - standard version

Part No. Transmission L1 L2 H1 B1 D1 D2 A1 Weight
ØT [g]
RL-A10.0105 4:1 90 110 87 50 8 20 31 230
Drive A
Joint with turntable on both sides (on the left) RL-A10.0104 8:1 90 110 87 50 8 20 31 230
RL-A10.0106 32:1 90 110 87 50 8 20 31 230
RL-A10.0107 64:1 90 110 87 50 8 20 31 230

Gearbox technology Drive B (right)
D1

H1
Technical data A1

Designation Transmission Self- Max. Max. output Breaking F stat. Backlash
locking speed torque moment axial
[rpm] [Nm] [Nm] [N] [°] L1 B1
4:1 – 160 2.5 20 250 < 0.5
L2
8:1 – 80 2.5 20 250 < 0.5
Joint
32:1 – 20 2.5 20 250 < 0.5
64:1 Yes 10 1.5 10 250 < 0.5 Technical data and dimensions [mm] - with coupling
Part No. Transmission L1 L2 H1 B1 D1 D2 A1 Weight
ØT [g]
RL-A10.0117 4:1 90 110 87 50 8 8 31 240
RL-A10.0200 8:1 90 110 87 50 8 8 31 240
Apiro iDeas RL-A10.0118 32:1 90 110 87 50 8 8 31 240
®
RL-A10.0119 64:1 90 110 87 50 8 8 31 240
RL-A10.0220 4:1 90 110 87 50 8 12 31 240
RL-A10.0207 8:1 90 110 87 50 8 12 31 240
● Simply recreate ideas for automation systems RL-A10.0204 32:1 90 110 87 50 8 12 31 240
● With connection to dryspin RL-A10.0203 64:1 90 110 87 50 8 12 31 240
®
● Select automation solution - download parts lists and
CAD files
u www.igus-asean.com/apiro-ideas
ASEAN 09/2023 ASEAN 09/2023

730 Online tools and more information u www.igus-asean.com/apiro 3D CAD files, prices and delivery time online u www.igus-asean.com/apiro 731
