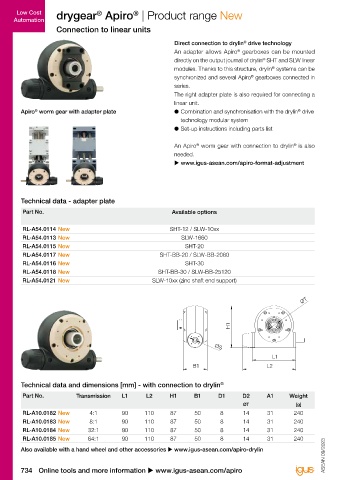

Low Cost drygear Apiro | Product range New drygear Apiro | Product range New Low Cost
Automation Automation
Connection to linear units Connection to linear units
®
Direct connection to drylin drive technology Direct connection to dryspin lead screw technology
®
An adapter allows Apiro gearboxes can be mounted Lead screws with diameters of 10, 12, and 16mm can be
®
directly on the output journal of drylin SHT and SLW linear connected directly to Apiro gearboxes with the output
®
®
modules. Thanks to this structure, drylin systems can be journal. Depending on the thread pitch, the lead screw can
®
synchronized and several Apiro gearboxes connected in be moved.
®
series.
The right adapter plate is also required for connecting a You will find the igus lead screw shop online:
®
linear unit. u www.igus-asean.com/apiro-format-adjustment
®
®
Apiro worm gear with adapter plate ● Combination and synchronisation with the drylin drive
technology modular system
● Set-up instructions including parts list
An Apiro worm gear with connection to drylin is also
®
®
needed.
u www.igus-asean.com/apiro-format-adjustment

Technical data - adapter plate Technical data

Part No. Available options Part No. Transmission Available options

RL-A54.0114 New SHT-12 / SLW-10xx RL-A10.0190 New 4:1 TR16x2
RL-A54.0113 New SLW-1660 RL-A10.0191 New 32:1 TR16x2
RL-A54.0115 New SHT-20 RL-A10.0192 New 64:1 TR16x2
RL-A54.0117 New SHT-BB-20 / SLW-BB-2080 RL-A10.0193 New 4:1 DS10x25
RL-A54.0116 New SHT-30 RL-A10.0194 New 32:1 DS10x25
RL-A54.0118 New SHT-BB-30 / SLW-BB-25120 RL-A10.0195 New 64:1 DS10x25
RL-A54.0121 New SLW-10xx (zinc shaft end support) RL-A10.0196 New 4:1 DS12x5
RL-A10.0197 New 32:1 DS12x5
ØT RL-A10.0198 New 64:1 DS12x5

H1

ØS
L1
B1 L2

Technical data and dimensions [mm] - with connection to drylin ®
Part No. Transmission L1 L2 H1 B1 D1 D2 A1 Weight
ØT [g] Synchronising drylin linear axes with Apiro worm
®
®
RL-A10.0182 New 4:1 90 110 87 50 8 14 31 240 gears allows automated format adjustment for the
RL-A10.0183 New 8:1 90 110 87 50 8 14 31 240 packaging and beverage industry
RL-A10.0184 New 32:1 90 110 87 50 8 14 31 240
RL-A10.0185 New 64:1 90 110 87 50 8 14 31 240
ASEAN 09/2023 ASEAN 09/2023
Also available with a hand wheel and other accessories u www.igus-asean.com/apiro-drylin
