Low Cost drygear Apiro | Product range drygear Apiro | Product range Low Cost
Automation Automation

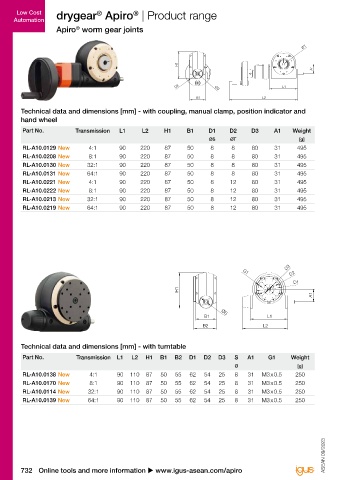

Apiro worm gear joints
®
D2
G1
ØT
D1
H1 H1
A1 A1

D3 L1 ØS
B1 L1
ØS
B1 L2
B2 L2
Technical data and dimensions [mm] - with coupling, manual clamp, position indicator and
hand wheel Technical data and dimensions [mm] - with turntable on both sides

Part No. Transmission L1 L2 H1 B1 D1 D2 D3 A1 Weight Part No. Transmission L1 L2 H1 B1 B2 D1 D2 S A1 G1 Weight
ØS ØT [g] Ø [g]
RL-A10.0129 New 4:1 90 220 87 50 8 8 80 31 495 RL-A10.0209 New 4:1 90 110 87 50 55 45 25 8 31 M3 x 0.5 280
RL-A10.0208 New 8:1 90 220 87 50 8 8 80 31 495 RL-A10.0206 New 8:1 90 110 87 50 55 45 25 8 31 M3 x 0.5 280
RL-A10.0130 New 32:1 90 220 87 50 8 8 80 31 495 RL-A10.0210 New 32:1 90 110 87 50 55 45 25 8 31 M3 x 0.5 280
RL-A10.0131 New 64:1 90 220 87 50 8 8 80 31 495 RL-A10.0211 New 64:1 90 110 87 50 55 45 25 8 31 M3 x 0.5 280
RL-A10.0221 New 4:1 90 220 87 50 8 12 80 31 495
RL-A10.0222 New 8:1 90 220 87 50 8 12 80 31 495
RL-A10.0213 New 32:1 90 220 87 50 8 12 80 31 495
RL-A10.0219 New 64:1 90 220 87 50 8 12 80 31 495
Apiro lift/push drive
®

● Dry operation thanks to tribologically optimised
plastics
● Adjustment can be motorised or manual
● Suitable for splash water applications
D3
D2
G1 ● Lightweight G1
D1 D1
H1 D2
A1
ØS H1
A1
ØS
B1 L1
B2 L2 L1 B1 L2
L3
Technical data and dimensions [mm] - with turntable Technical data and dimensions [mm]

Part No. Transmission L1 L2 H1 B1 B2 D1 D2 D3 S A1 G1 Weight Part No. load Feed rate Stroke Speed L1 L2 H1 B1 D1 D2 S A1 G1
Ø [g] [N] [mm/rev] [mm] [mm/s] Ø
RL-A10.0138 New 4:1 90 110 87 50 55 62 54 25 8 31 M3 x 0.5 250 RL-A18.0101. New 250 0.5 10-250 5 80 10-250 87 50 27 62 8 31 M3
RL-A10.0170 New 8:1 90 110 87 50 55 62 54 25 8 31 M3 x 0.5 250 Stroke freely configurable from 10-250mm
RL-A10.0114 New 32:1 90 110 87 50 55 62 54 25 8 31 M3 x 0.5 250
RL-A10.0139 New 64:1 90 110 87 50 55 62 54 25 8 31 M3 x 0.5 250

ASEAN 09/2023 ASEAN 09/2023

732 Online tools and more information u www.igus-asean.com/apiro 3D CAD files, prices and delivery time online u www.igus-asean.com/apiro 733
