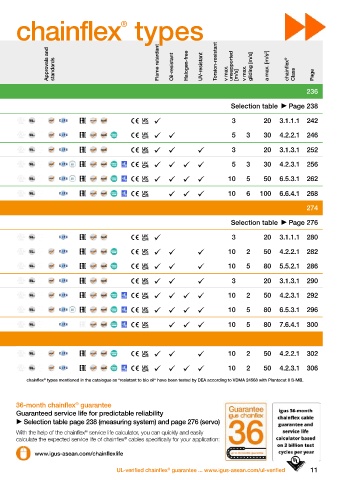

chainflex ® cable Jacket Shield Minimum bend radius, e-chain ® [factor x d] Temperature, e-chain ® from/to [°C] Price index Approvals and standards Flame retardant Oil-resistant Halogen-free UV-resistant Torsion-resistant v max. unsupported [m/s] v max. gliding [m/s] a max. [m/s 2 ] chainflex ® Class Page

Measuring system cables 236

Guaranteed service life for these series (Details Page 28-29) Selection table Page 238

CF884 PVC  15 +5/ +70  3 20 3.1.1.1 242

CF211 New! PVC  10 +5/ +70   5 3 30 4.2.2.1 246

CF894 iguPUR  15 -20/+80    3 20 3.1.3.1 252

CF111.D New! PUR  10 -25/ +80     5 3 30 4.2.3.1 256

CF113.D PUR  7.5 -25/ +80     10 5 50 6.5.3.1 262

CF11.D TPE  6.8 -35/ +90    10 6 100 6.6.4.1 268

Servo cables 274

Guaranteed service life for these series (Details Page 28-29) Selection table Page 276

CF887 PVC  15 +5/ +70  3 20 3.1.1.1 280

CF210.UL PVC  10 +5/ +70    10 2 50 4.2.2.1 282

CF21.UL PVC  7.5 +5/ +70    10 5 80 5.5.2.1 286

CF897 iguPUR  15 -20/+80    3 20 3.1.3.1 290

CF270.UL.D PUR  10 -25/ +80     10 2 50 4.2.3.1 292

CF27.D PUR  7.5 -25/ +80     10 5 80 6.5.3.1 296

CF29.D TPE  6.8 +35/ +100    10 5 80 7.6.4.1 300

Hybrid cables

CF220.UL.H New! PVC  10 +5/ +70    10 2 50 4.2.2.1 302

CF280.UL.H New! PUR  10 -25/ +80     10 2 50 4.2.3.1 306

These values are based on specific applications or tests. They do not represent the limit of what is technically feasible. chainflex types mentioned in the catalogue as “resistant to bio oil“ have been tested by DEA according to VDMA 24568 with Plantocut 8 S-MB.
®

36-month chainflex guarantee
®
Guaranteed service life for predictable reliability
 Selection table page 238 (measuring system) and page 276 (servo)
Download the EPLAN library for any type of cable www.igus-asean.com/EPLAN-download
®
With the help of the chainflex service life calculator, you can quickly and easily
calculate the expected service life of chainflex cables specifically for your application:
®
Get online and use all of the tools and data  www.igus-asean.com/chainflex www.igus-asean.com/chainflexlife
