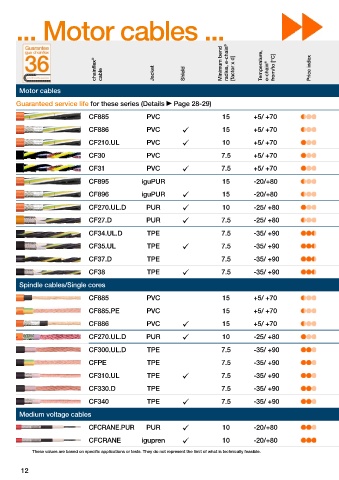

... Motor cables ... chainflex types
®

chainflex ® cable Jacket Shield Minimum bend radius, e-chain ® [factor x d] Temperature, e-chain ® from/to [°C] Price index Approvals and standards Flame retardant Oil-resistant Halogen-free UV-resistant Torsion-resistant v max. unsupported [m/s] v max. gliding [m/s] a max. [m/s 2 ] chainflex ® Class Page

Motor cables 312

Guaranteed service life for these series (Details Page 28-29) Selection table From page 314

CF885 PVC 15 +5/ +70  3 20 3.1.1.1 318

CF886 PVC  15 +5/ +70  3 20 3.1.1.1 320
CF210.UL PVC  10 +5/ +70    10 2 50 4.2.2.1 322

CF30 PVC 7.5 +5/ +70     10 5 80 5.5.2.2 324

CF31 PVC  7.5 +5/ +70    10 5 80 5.5.2.1 328

CF895 iguPUR 15 -20/+80    3 20 3.1.3.1 332

CF896 iguPUR  15 -20/+80    3 20 3.1.3.1 334
CF270.UL.D PUR  10 -25/ +80     10 2 50 4.2.3.1 336

CF27.D PUR  7.5 -25/ +80     10 5 80 6.5.3.1 340

CF34.UL.D TPE 7.5 -35/ +90     10 6 80 6.6.4.2 344

CF35.UL TPE  7.5 -35/ +90    10 6 80 6.6.4.1 348

CF37.D TPE 7.5 -35/ +90     10 6 80 7.6.4.2 352

CF38 TPE  7.5 -35/ +90    10 6 80 7.6.4.1 354

Spindle cables/Single cores
CF885 PVC 15 +5/ +70  3 20 3.1.1.1 356

CF885.PE PVC 15 +5/ +70  3 20 3.1.1.1 358

CF886 PVC  15 +5/ +70  3 20 3.1.1.1 360

CF270.UL.D PUR  10 -25/ +80     10 2 50 4.2.3.1 362

CF300.UL.D TPE 7.5 -35/ +90     10 6 100 6.6.4.2 364
CFPE TPE 7.5 -35/ +90     10 6 100 6.6.4.2 366

CF310.UL TPE  7.5 -35/ +90    10 6 100 6.6.4.1 368

CF330.D TPE 7.5 -35/ +90     10 6 100 7.6.4.2 370

CF340 TPE  7.5 -35/ +90    10 6 100 7.6.4.1 372

Medium voltage cables

CFCRANE.PUR PUR  10 -20/+80    10 6 50 6.6.3.1 374

CFCRANE igupren  10 -20/+80    10 6 50 6.6.3.1 376
These values are based on specific applications or tests. They do not represent the limit of what is technically feasible. chainflex types mentioned in the catalogue as “resistant to bio oil“ have been tested by DEA according to VDMA 24568 with Plantocut 8 S-MB.
®
