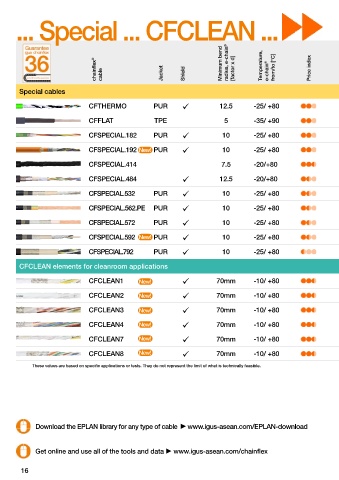

... Special ... CFCLEAN ... chainflex types
®

chainflex ® cable Jacket Shield Minimum bend radius, e-chain ® [factor x d] Temperature, e-chain ® from/to [°C] Price index Approvals and standards Flame retardant Oil-resistant Halogen-free UV-resistant Torsion-resistant v max. unsupported [m/s] v max. gliding [m/s] a max. [m/s 2 ] chainflex ® Class Page

Special cables 418

CFTHERMO PUR  12.5 -25/ +80    2 1 20 5.4.3.1 420

CFFLAT TPE 5 -35/ +90    10 6 100 7.5.4.1 422

CFSPECIAL.182 PUR  10 -25/ +80     10 6 100 - 424

CFSPECIAL.192 New! PUR  10 -25/ +80     10 2 50 - 426

CFSPECIAL.414 7.5 -20/+80     10 - 20 - 428

CFSPECIAL.484  12.5 -20/+80     10 - 20 - 430

CFSPECIAL.532 PUR  10 -25/ +80     10 2 50 - 432

CFSPECIAL.562.PE PUR  10 -25/ +80     10 2 50 - 434

CFSPECIAL.572 PUR  10 -25/ +80     10 2 50 - 436

CFSPECIAL.592 New! PUR  10 -25/ +80     10 2 50 - 438

CFSPECIAL.792 PUR  10 -25/ +80     3 2 20 - 440

CFCLEAN elements for cleanroom applications 444

CFCLEAN1 New!  70mm -10/ +80  2 - 40 450

CFCLEAN2 New!  70mm -10/ +80  2 - 40 452

CFCLEAN3 New!  70mm -10/ +80  2 - 40 454

CFCLEAN4 New!  70mm -10/ +80  2 - 40 456

CFCLEAN7 New!  70mm -10/ +80  2 - 40 458

CFCLEAN8 New!  70mm -10/ +80  2 - 40 460

®
These values are based on specific applications or tests. They do not represent the limit of what is technically feasible. chainflex types mentioned in the catalogue as “resistant to bio oil“ have been tested by DEA according to VDMA 24568 with Plantocut 8 S-MB.

chainflex guarantee
®
These series are solutions for special applications, please contact igus for
®
Download the EPLAN library for any type of cable www.igus-asean.com/EPLAN-download information about the service life guarantee:

Phone +49-2203 9649-0, info@igus.de
Get online and use all of the tools and data  www.igus-asean.com/chainflex

16 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 17
®
