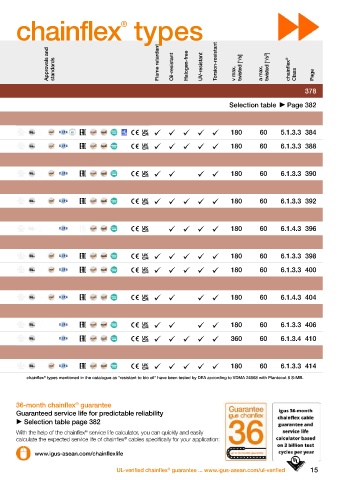

Page 21 - ASEAN Chainflex Catalogue 2023

... Robots ... Torsion ... chainflex types
®

chainflex ® cable Jacket Shield Minimum bend radius, e-chain ® [factor x d] Torsion angle [°/m] Temperature, e-chain ® from/to [°C] Price index Approvals and standards Flame retardant Oil-resistant Halogen-free UV-resistant Torsion-resistant v max. twisted [°/s] a max. twisted [°/s²] chainflex ® Class Page

Twistable cables 378

Guaranteed service life for these series (Details Page 28-29) Selection table Page 382

Control cables

CF77.UL.D PUR 6.8 ±180 -25/ +80      180 60 5.1.3.3 384

CFROBOT2 PUR  10 ±180 -25/ +80      180 60 6.1.3.3 388

Data cable

CFROBOT3 PUR  10 ±180 -25/ +80     180 60 6.1.3.3 390

Measuring system cable

CFROBOT4 PUR  10 ±180 -25/ +80      180 60 6.1.3.3 392

Fibre Optic Cable

CFROBOT5 TPE 10 ±180 -35/ +80     180 60 6.1.4.3 396

Motor cables

CFROBOT6 PUR 10 ±180 -25/ +80      180 60 6.1.3.3 398

CFROBOT7 PUR  10 ±180 -25/ +80      180 60 6.1.3.3 400

Spindle cables/Single cores

CFROBOT TPE  10 ±180 -35/ +90     180 60 6.1.4.3 404

Bus cables

CFROBOT8 PUR  10 ±180 -25/ +70     180 60 6.1.3.3 406

CFROBOT8.PLUS New! PUR  10 ±180 -25/ +70      360 60 6.1.3.4 410

Hybrid cable

CFROBOT9 PUR  10 ±180 -25/ +80      180 60 6.1.3.3 414

These values are based on specific applications or tests. They do not represent the limit of what is technically feasible. chainflex types mentioned in the catalogue as “resistant to bio oil“ have been tested by DEA according to VDMA 24568 with Plantocut 8 S-MB.
®

36-month chainflex guarantee
®
Guaranteed service life for predictable reliability
 Selection table page 382
Download the EPLAN library for any type of cable www.igus-asean.com/EPLAN-download
®
With the help of the chainflex service life calculator, you can quickly and easily
calculate the expected service life of chainflex cables specifically for your application:
®
Get online and use all of the tools and data  www.igus-asean.com/chainflex www.igus-asean.com/chainflexlife
