CF884 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF884
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
15 x d ® Oil resistance none 1 2 3 4 highest 15 x d

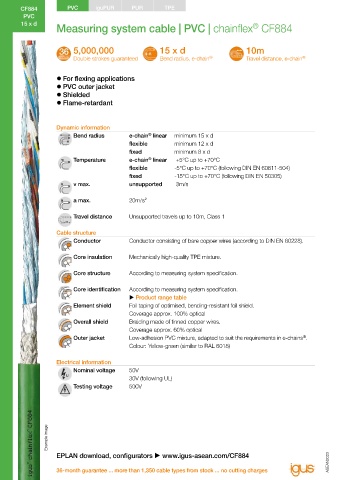

Measuring system cable | PVC | chainflex CF884 Class 3.1.1.1 Torsion none 1 2 3 4 ±360°

5,000,000 15 x d 10m Properties and approvals According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
Flame-retardant
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z For flexing applications 1992)
z PVC outer jacket UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z Shielded service life calculator based on 2 billion test cycles per year"
z Flame-retardant UL/CSA AWM See data sheet for details www.igus-asean.com/CF884

NFPA Following NFPA 79-2018, chapter 12.9
Dynamic information
Bend radius e-chain linear minimum 15 x d EAC Certificate No. RU C-DE.ME77.B.00295/19
®
flexible minimum 12 x d
fixed minimum 8 x d REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
®
Temperature e-chain linear +5°C up to +70°C
flexible -5°C up to +70°C (following DIN EN 60811-504) Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
fixed -15°C up to +70°C (following DIN EN 50305)
v max. unsupported 3m/s CE Following 2014/35/EU

a max. 20m/s² UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Travel distance Unsupported travels up to 10m, Class 1
Guaranteed service life (details see page 28-29)
Cable structure Double strokes* 1 million 3 million 5 million

Conductor Conductor consisting of bare copper wires (according to DIN EN 60228). Temperature, R min. R min. R min.
from/to [°C] [factor x d] [factor x d] [factor x d]
Core insulation Mechanically high-quality TPE mixture. +5/+15 17.5 18.5 19.5
+15/+60 15 16 17
Core structure According to measuring system specification. +60/+70 17.5 18.5 19.5
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Core identification According to measuring system specification.
 Product range table Typical application areas
Element shield Foil taping of optimised, bending-resistant foil shield. z For flexing applications, Class 3
Coverage approx. 100% optical z Especially for unsupported travels, Class 1
Overall shield Braiding made of tinned copper wires. z Without influence of oil, Class 1
Coverage approx. 60% optical z No torsion, Class 1
Outer jacket Low-adhesion PVC mixture, adapted to suit the requirements in e-chains . z Preferably indoor applications
®
Colour: Yellow-green (similar to RAL 6018) z Wood/stone processing, packaging industry, feeding, handling, adjusting devices

Electrical information
Nominal voltage 50V
30V (following UL)
Testing voltage 500V

Example image

EPLAN download, configurators  www.igus-asean.com/CF884
