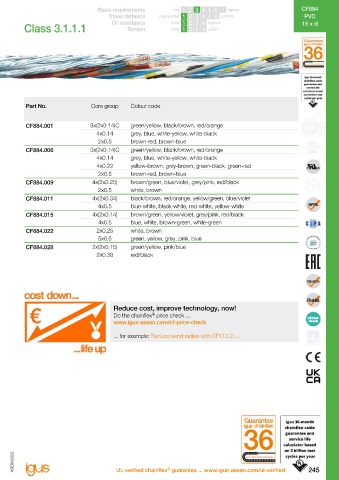

Page 251 - ASEAN Chainflex Catalogue 2023

CF884 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF884
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
15 x d ® Oil resistance none 1 2 3 4 highest 15 x d
Measuring system cable | PVC | chainflex CF884 Class 3.1.1.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF884.001 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 8.5 41 91 CF884.001 3x(2x0.14)C green/yellow, black/brown, red/orange
4x0.14 grey, blue, white-yellow, white-black
2x0.5 brown-red, brown-blue
CF884.006 (3x(2x0.14)C+(4x0.14)+(4x0.22) 9.0 50 101 CF884.006 3x(2x0.14)C green/yellow, black/brown, red/orange
+(2x0.5))C 4x0.14 grey, blue, white-yellow, white-black

4x0.22 yellow-brown, grey-brown, green-black, green-red
2x0.5 brown-red, brown-blue
CF884.009 (4x(2x0.25)+2x0.5)C 8.0 44 91 CF884.009 4x(2x0.25) brown/green, blue/violet, grey/pink, red/black
2x0.5 white, brown
CF884.011 (4x(2x0.34)+4x0.5)C 9.5 64 117 CF884.011 4x(2x0.34) black/brown, red/orange, yellow/green, blue/violet
4x0.5 blue-white, black-white, red-white, yellow-white
CF884.015 (4x(2x0.14)+4x0.5)C 8.5 44 92 CF884.015 4x(2x0.14) brown/green, yellow/violet, grey/pink, red/black
4x0.5 blue, white, brown-green, white-green
CF884.022 ((2x0.25)+5x0.5)C 8.0 44 79 CF884.022 2x0.25 white, brown
5x0.5 green, yellow, grey, pink, blue
CF884.028 (2x(2x0.15)+(2x0.38))C 7.5 41 58 CF884.028 2x(2x0.15) green/yellow, pink/blue
2x0.38 red/black

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

®
Cables available in the chainflex CASE Reduce cost, improve technology, now!
®
Simple savings on delivery, storage space and re-ordering with Do the chainflex price check ...
the chainflex CASE - ship'n store by igus . www.igus-asean.com/cf-price-check
®
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case
... for example: Reduce bend radius with CF113.D ...

Order example: CF884.015 – to your desired length (0.5m steps)
CF884 chainflex series .015 Code measuring system type
®
Order online  www.igus-asean.com/CF884

Delivery time 24hrs or today.
Delivery time means time until goods are shipped.

EPLAN download, configurators  www.igus-asean.com/CF884
