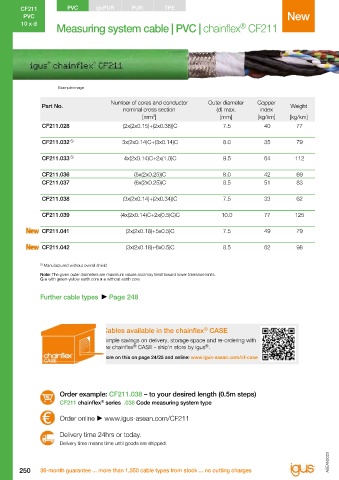

Page 256 - ASEAN Chainflex Catalogue 2023

CF211 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF211
PVC New Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Measuring system cable | PVC | chainflex CF211 Class 4.2.2.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF211.028 (2x(2x0.15)+(2x0.38))C 7.5 40 77 CF211.028 2x(2x0.15) green/yellow, pink/blue
(2x0.38) red/black
CF211.032 5) 3x(2x0.14)C+(3x0.14)C 8.0 35 79 CF211.032 5) 3x(2x0.14)C green/black, yellow/black, red/black
(3x0.14)C grey/pink/black
CF211.033 5) 4x(2x0.14)C+2x(1.0)C 9.5 64 112 CF211.033 5) 4x(2x0.14)C yellow/black, red/black, blue/black, green/black
2x(1.0)C white, brown
CF211.036 (5x(2x0.25))C 8.0 42 69 CF211.036 5x(2x0.25) white/brown green/yellow, grey/pink, blue/red, black/violet
CF211.037 (6x(2x0.25))C 8.5 51 83 CF211.037 white/brown, green/yellow, grey/pink, blue/red, black/violet, grey-pink/
6x(2x0.25)
red-blue
CF211.038 (3x(2x0.14)+(2x0.34))C 7.5 33 62 CF211.038 3x(2x0.14) white/brown, green/yellow, grey/pink
(2x0.34) blue/red
CF211.039 (4x(2x0.14)C+2x(0.5)C)C 10.0 77 125 CF211.039 (4x(2x0.14)C green/yellow, grey/pink, blue/red, black/violet
2x(0.5)C brown, black
CF211.041 (2x(2x0.18)+5x0.5)C 7.5 49 79 CF211.041 2x(2x0.18) white/brown, black/violet
5x0.5 blue, violet, green, yellow, grey
CF211.042 (3x(2x0.18)+6x0.5)C 8.5 62 98 CF211.042 3x(2x0.18) white/black, red/white, black/red
6x0.5 black no. 1, black no. 2, black no. 3, red no. 4, red no. 5, red no. 6

5) Manufactured without overall shield
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Further cable types Page 248

®
Cables available in the chainflex CASE Reduce cost, improve technology, now!
®
Simple savings on delivery, storage space and re-ordering with Do the chainflex price check ...
®
the chainflex CASE - ship'n store by igus . www.igus-asean.com/cf-price-check
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case
… for example: reduce cost with CF884 ...

Order example: CF211.038 – to your desired length (0.5m steps)
CF211 chainflex series .038 Code measuring system type
®

Order online  www.igus-asean.com/CF211

Delivery time 24hrs or today.
Delivery time means time until goods are shipped.
