CF894 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF894
iguPUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m iguPUR
15 x d ® Oil resistance none 1 2 3 4 highest 15 x d

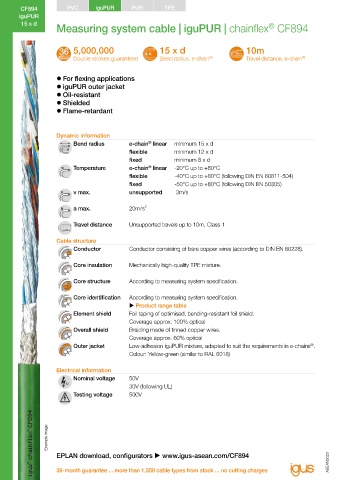

Measuring system cable | iguPUR | chainflex CF894 Class 3.1.3.1 Torsion none 1 2 3 4 ±360°

5,000,000 15 x d 10m Properties and approvals Medium
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z For flexing applications
z iguPUR outer jacket Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Oil-resistant
z Shielded Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Flame-retardant 1992)
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
Dynamic information UL/CSA AWM See data sheet for details  www.igus-asean.com/CF894
®
Bend radius e-chain linear minimum 15 x d
flexible minimum 12 x d NFPA Following NFPA 79-2018, chapter 12.9
fixed minimum 8 x d
Temperature e-chain linear -20°C up to +80°C EAC Certificate No. RU C-DE.ME77.B.00295/19
®
flexible -40°C up to +80°C (following DIN EN 60811-504)
fixed -50°C up to +80°C (following DIN EN 50305) REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
v max. unsupported 3m/s
Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
a max. 20m/s²
CE Following 2014/35/EU
Travel distance Unsupported travels up to 10m, Class 1
UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Cable structure
Conductor Conductor consisting of bare copper wires (according to DIN EN 60228).
Guaranteed service life (details see page 28-29)
Core insulation Mechanically high-quality TPE mixture. Double strokes* 1 million 3 million 5 million

Temperature, R min. R min. R min.
Core structure According to measuring system specification. from/to [°C] [factor x d] [factor x d] [factor x d]
-20/-10 17.5 18.5 19.5
Core identification According to measuring system specification. -10/+70 15 16 17
 Product range table +70/+80 17.5 18.5 19.5
Element shield Foil taping of optimised, bending-resistant foil shield. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Coverage approx. 100% optical
Overall shield Braiding made of tinned copper wires. Typical application areas
Coverage approx. 60% optical z For flexing applications, Class 3
®
Outer jacket Low-adhesion iguPUR mixture, adapted to suit the requirements in e-chains . z Especially for unsupported travels, Class 1
Colour: Yellow-green (similar to RAL 6018) z With influence of oil, Class 3
z No torsion, Class 1
Electrical information z Indoor and outdoor applications without direct sun radiation
Nominal voltage 50V z Machining units/machine tools, low temperature applications
30V (following UL)
Testing voltage 500V

Example image

EPLAN download, configurators  www.igus-asean.com/CF894
