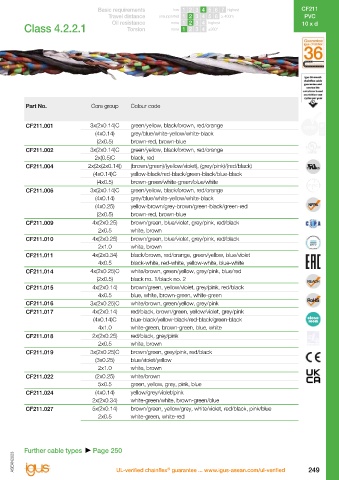

Page 255 - ASEAN Chainflex Catalogue 2023

CF211 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF211
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Measuring system cable | PVC | chainflex CF211 Class 4.2.2.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF211.001 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.0 64 100 CF211.001 3x(2x0.14)C green/yellow, black/brown, red/orange
(4x0.14) grey/blue/white-yellow/white-black
(2x0.5) brown-red, brown-blue
CF211.002 (3x(2x0.14)C+2x(0.5)C)C 9.5 66 106 CF211.002 3x(2x0.14)C green/yellow, black/brown, red/orange
2x(0.5)C black, red
CF211.004 (2x(2x(2x0.14))+(4x0.14)C 10.0 70 115 CF211.004 2x(2x(2x0.14)) (brown/green)/(yellow/violet), (grey/pink)/(red/black)
+(4x0.5))C (4x0.14)C yellow-black/red-black/green-black/blue-black
(4x0.5) brown-green/white-green/blue/white
CF211.006 (3x(2x0.14)C+(4x0.14)+(4x0.25) 10.0 76 122 CF211.006 3x(2x0.14)C green/yellow, black/brown, red/orange
+(2x0.5))C (4x0.14) grey/blue/white-yellow/white-black
(4x0.25) yellow-brown/grey-brown/green-black/green-red
(2x0.5) brown-red, brown-blue
CF211.009 (4x(2x0.25)+2x0.5)C 8.0 49 79 CF211.009 4x(2x0.25) brown/green, blue/violet, grey/pink, red/black
2x0.5 white, brown
CF211.010 (4x(2x0.25)+2x1.0)C 8.5 61 92 CF211.010 4x(2x0.25) brown/green, blue/violet, grey/pink, red/black
2x1.0 white, brown
CF211.011 (4x(2x0.34)+4x0.5)C 9.5 72 109 CF211.011 4x(2x0.34) black/brown, red/orange, green/yellow, blue/violet
4x0.5 black-white, red-white, yellow-white, blue-white
CF211.014 (4x(2x0.25)C+(2x0.5))C 10.5 77 124 CF211.014 4x(2x0.25)C white/brown, green/yellow, grey/pink, blue/red
(2x0.5) black no. 1/black no. 2
CF211.015 (4x(2x0.14)+4x0.5)C 8.5 54 86 CF211.015 4x(2x0.14) brown/green, yellow/violet, grey/pink, red/black
4x0.5 blue, white, brown-green, white-green
CF211.016 (3x(2x0.25)C)C 9.0 51 89 CF211.016 3x(2x0.25)C white/brown, green/yellow, grey/pink
CF211.017 (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 92 134 CF211.017 4x(2x0.14) red/black, brown/green, yellow/violet, grey/pink
(4x0.14)C blue-black/yellow-black/red-black/green-black
4x1.0 white-green, brown-green, blue, white
CF211.018 (2x(2x0.25)+2x0.5)C 6.5 34 54 CF211.018 2x(2x0.25) red/black, grey/pink
2x0.5 white, brown
CF211.019 (3x(2x0.25)C+(3x0.25)+2x1.0)C 10.0 86 125 CF211.019 3x(2x0.25)C brown/green, grey/pink, red/black
(3x0.25) blue/violet/yellow
2x1.0 white, brown
CF211.022 ((2x0.25)+5x0.5)C 7.0 46 71 CF211.022 (2x0.25) white/brown
5x0.5 green, yellow, grey, pink, blue
CF211.024 ((4x0.14)+2x(2x0.34))C 7.0 36 61 CF211.024 (4x0.14) yellow/grey/violet/pink
2x(2x0.34) white-green/white, brown-green/blue
CF211.027 (5x(2x0.14)+2x0.5)C 8.0 45 75 CF211.027 5x(2x0.14) brown/green, yellow/grey, white/violet, red/black, pink/blue
2x0.5 white-green, white-red

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Further cable types Page 250
EPLAN download, configurators  www.igus-asean.com/CF211
