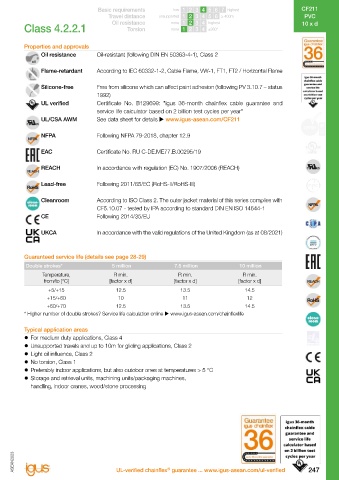

Page 253 - ASEAN Chainflex Catalogue 2023

CF211 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF211
PVC New Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Measuring system cable | PVC | chainflex CF211 Class 4.2.2.1 Torsion none 1 2 3 4 ±360°

10 million 10 x d 10m Properties and approvals Oil-resistant (following DIN EN 50363-4-1), Class 2
Oil resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z For medium duty applications
z PVC outer jacket Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Shielded 1992)
z Oil-resistant UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z Flame-retardant service life calculator based on 2 billion test cycles per year"
UL/CSA AWM See data sheet for details  www.igus-asean.com/CF211

Dynamic information NFPA Following NFPA 79-2018, chapter 12.9
®
Bend radius e-chain linear minimum 10 x d
flexible minimum 8 x d EAC Certificate No. RU C-DE.ME77.B.00295/19
fixed minimum 5 x d
Temperature e-chain linear +5°C up to +70°C REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
®
flexible -5°C up to +70°C (following DIN EN 60811-504)
fixed -15°C up to +70°C (following DIN EN 50305) Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
v max. unsupported 5m/s
gliding 3m/s Cleanroom According to ISO Class 2. The outer jacket material of this series complies with
a max. 30m/s² CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
CE Following 2014/35/EU
Travel distance Unsupported travels and up to 10m for gliding applications, Class 2
UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Cable structure
Conductor Very finely stranded special conductors of particularly bending resistant design
made of tinned copper wires. Guaranteed service life (details see page 28-29)
Core insulation Mechanically high-quality TPE mixture. Double strokes* 5 million 7.5 million 10 million

Temperature, R min. R min. R min.
Core structure According to measuring system specification. from/to [°C] [factor x d] [factor x d] [factor x d]
+5/+15 12.5 13.5 14.5
Core identification According to measuring system specification. +15/+60 10 11 12
 Product range table +60/+70 12.5 13.5 14.5
Element shield Extremely bending-resistant, tinned copper cover. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Coverage approx. 90% optical
®
Element shield TPE mixture on pair shielding adapted to suit the requirements in e-chains . Typical application areas
z For medium duty applications, Class 4
Intermediate layer Foil taping over the outer layer. z Unsupported travels and up to 10m for gliding applications, Class 2
z Light oil influence, Class 2
Overall shield Extremely bending-resistant braiding made of tinned copper wires. z No torsion, Class 1
Coverage linear approx. 55%, optical approx. 80% z Preferably indoor applications, but also outdoor ones at temperatures > 5 °C
Outer jacket Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in z Storage and retrieval units, machining units/packaging machines,
®
e-chains (following DIN EN 50363-4-1). handling, indoor cranes, wood/stone processing
Colour: Yellow-green (similar to RAL 6018)
Electrical information
Nominal voltage 50V
300V (following UL)
500V
Example image
Testing voltage

EPLAN download, configurators  www.igus-asean.com/CF211

246 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 247
®
