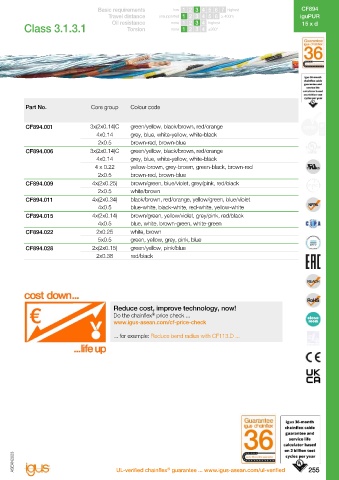

CF894 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF894
iguPUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m iguPUR
15 x d ® Oil resistance none 1 2 3 4 highest 15 x d
Measuring system cable | iguPUR | chainflex CF894 Class 3.1.3.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF894.001 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 8.5 41 80 CF894.001 3x(2x0.14)C green/yellow, black/brown, red/orange
4x0.14 grey, blue, white-yellow, white-black
2x0.5 brown-red, brown-blue
CF894.006 (3x(2x0.14)C+(4x0.14)+(4x0.22) 9.0 50 105 CF894.006 3x(2x0.14)C green/yellow, black/brown, red/orange
+(2x0.5))C 4x0.14 grey, blue, white-yellow, white-black
4 x 0.22 yellow-brown, grey-brown, green-black, brown-red
2x0.5 brown-red, brown-blue
CF894.009 (4x(2x0.25)+2x0.5)C 8.0 44 80 CF894.009 4x(2x0.25) brown/green, blue/violet, grey/pink, red/black
2x0.5 white/brown
CF894.011 (4x(2x0.34)+4x0.5)C 9.5 64 126 CF894.011 4x(2x0.34) black/brown, red/orange, yellow/green, blue/violet
4x0.5 blue-white, black-white, red-white, yellow-white
CF894.015 (4x(2x0.14)+4x0.5)C 8.5 44 84 CF894.015 4x(2x0.14) brown/green, yellow/violet, grey/pink, red/black
4x0.5 blue, white, brown-green, white-green
CF894.022 ((2x0.25)+5x0.5)C 8.0 44 78 CF894.022 2x0.25 white, brown
5x0.5 green, yellow, grey, pink, blue
CF894.028 (2x(2x0.15)+(2x0.38))C 7.5 41 57 CF894.028 2x(2x0.15) green/yellow, pink/blue
2x0.38 red/black

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

®
Cables available in the chainflex CASE Reduce cost, improve technology, now!
Simple savings on delivery, storage space and re-ordering with Do the chainflex price check ...
®
®
the chainflex CASE - ship'n store by igus . www.igus-asean.com/cf-price-check
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case
... for example: Reduce bend radius with CF113.D ...

Order example: CF894.011 – to your desired length (0.5m steps)
CF894 chainflex series .011 Code measuring system type
®
Order online  www.igus-asean.com/CF894

Delivery time 24hrs or today.
Delivery time means time until goods are shipped.

EPLAN download, configurators  www.igus-asean.com/CF894
