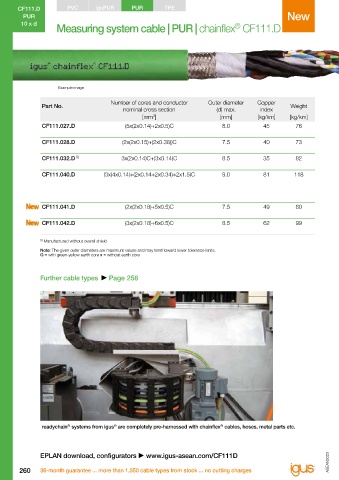

Page 266 - ASEAN Chainflex Catalogue 2023

CF111.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF111.D
PUR New Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Measuring system cable | PUR | chainflex CF111.D Class 4.2.3.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF111.027.D (5x(2x0.14)+2x0.5)C 8.0 45 76 CF111.027.D 5x(2x0.14) brown/green, yellow/grey, white/violet, red/black, pink/blue
2x0.5 white-green, white-red
CF111.028.D (2x(2x0.15)+(2x0.38))C 7.5 40 73 CF111.028.D 2x(2x0.15) green/yellow, pink/blue
(2x0.38) red/black
CF111.032.D 5) 3x(2x0.14)C+(3x0.14)C 8.5 35 82 CF111.032.D 5) 3x(2x0.14)C green/black, yellow/black, red/black
(3x0.14)C grey/pink/black
CF111.040.D (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 9.0 81 118 CF111.040.D 3x(4x0.14) black/red/white-black/white-red, green/blue/white-green/white-blue,
yellow/brown/white-yellow/white-brown
(2x0.14+2x0.34) violett/orange/weißviolett/weißorange
2x1.5 white-grey, grey
CF111.041.D (2x(2x0.18)+5x0.5)C 7.5 49 80 CF111.041.D 2x(2x0.18) white/brown, black/violet
5x0.5 blue, violet, green, yellow, grey
CF111.042.D (3x(2x0.18)+6x0.5)C 8.5 62 99 CF111.042.D 3x(2x0.18) white/black, red/white, black/red
6x0.5 black no. 1, black no. 2, black no. 3, red no. 4, red no. 5, red no. 6
5) Manufactured without overall shield
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Further cable types Page 258
Cables available in the chainflex CASE
®
Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
More on this on page 24/25 and online: www.igus-asean.com/cf-case

Reduce cost, improve technology, now!
Do the chainflex price check ...
®
www.igus-asean.com/cf-price-check
… for example: reduce cost with CF211 ...

®
readychain systems from igus are completely pre-harnessed with chainflex cables, hoses, metal parts etc.
®
®

EPLAN download, configurators  www.igus-asean.com/CF111D
