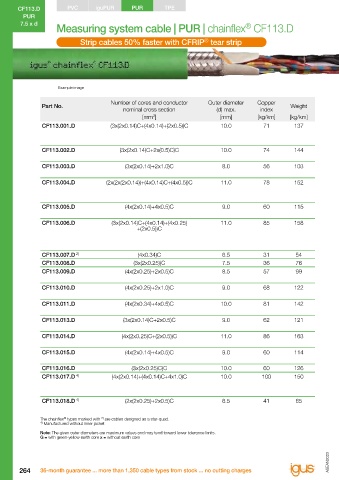

CF113.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF113.D
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Measuring system cable | PUR | chainflex CF113.D Class 6.5.3.1 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF113.001.D (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 71 137 CF113.001.D 3x(2x0.14)C green/yellow, black/brown, red/orange
(4x0.14) grey/blue/white-yellow/white-black
(2x0.5) brown-red/brown-blue
CF113.002.D (3x(2x0.14)C+2x(0.5)C)C 10.0 74 144 CF113.002.D 3x(2x0.14)C green/yellow, black/brown, red/orange
2x(0.5)C black, red
CF113.003.D (3x(2x0.14)+2x1.0)C 8.0 56 103 CF113.003.D 3x(2x0.14) white/brown, green/yellow, grey/pink
2x1.0 blue, red
CF113.004.D (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 78 152 CF113.004.D 2x(2x(2x0.14)) (brown/green)/(yellow/violet), (grey/pink)/(red/black)
(4x0.14)C yellow-black/red-black/green-black/blue-black
(4x0.5) brown-green/white-green/blue/white
CF113.005.D (4x(2x0.14)+4x0.5)C 9.0 60 115 CF113.005.D 4x(2x0.14) white/brown, green/yellow, grey/pink, blue/red
4x0.5 black, violet, grey-pink, red-blue
CF113.006.D (3x(2x0.14)C+(4x0.14)+(4x0.25) 11.0 85 158 CF113.006.D 3x(2x0.14)C green/yellow, black/brown, red/orange
+(2x0.5))C (4x0.14) grey/blue/white-yellow/white-black

(4x0.25) yellow-brown/grey-brown/green-black/green-red
(2x0.5) brown-red/brown-blue
CF113.007.D 2) (4x0.34)C 6.5 31 54 CF113.007.D 2) 4x0.34 white, green, brown, yellow (star-quad)
CF113.008.D (3x(2x0.25))C 7.5 36 76 CF113.008.D 3x(2x0.25) white/brown, green/yellow, grey/pink
CF113.009.D (4x(2x0.25)+2x0.5)C 8.5 57 99 CF113.009.D 4x(2x0.25) brown/green, blue/violet, grey/pink, red/black
2x0.5 white, brown
CF113.010.D (4x(2x0.25)+2x1.0)C 9.0 68 122 CF113.010.D 4x(2x0.25) brown/green, blue/violet, grey/pink, red/black
2x1.0 white, brown
CF113.011.D (4x(2x0.34)+4x0.5)C 10.0 81 142 CF113.011.D 4x(2x0.34) black/brown, red/orange, green/yellow, blue/violet
4x0.5 black-white, red-white, yellow-white, blue-white
CF113.013.D (3x(2x0.14)C+2x0.5)C 9.0 62 121 CF113.013.D 3x(2x0.14)C white/brown, green/yellow, grey/pink
2x0.5 blue, red
CF113.014.D (4x(2x0.25)C+(2x0.5))C 11.0 86 163 CF113.014.D 4x(2x0.25)C white/brown, green/yellow, grey/pink, blue/red
(2x0.5) black no. 1/black no. 2
CF113.015.D (4x(2x0.14)+4x0.5)C 9.0 60 114 CF113.015.D (4x(2x0.15))C brown/green, yellow/violet, grey/pink, red/black
4x0.5 blue, white, brown-green, white-green
CF113.016.D (3x(2x0.25)C)C 10.0 60 126 CF113.016.D 3x(2x0.25)C white/brown, green/yellow, grey/pink
CF113.017.D 4) (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 100 150 CF113.017.D 4) 4x(2x0.14) red/black, brown/green, yellow/violet, grey/pink
(4x0.14)C blue-black/yellow-black/red-black/green-black
4x1.0 white-green, brown-green, blue, white
CF113.018.D 4) (2x(2x0.25)+2x0.5)C 6.5 41 65 CF113.018.D 4) 2x(2x0.25) red/black, grey/pink
2x0.5 white, brown
2)
The chainflex types marked with are cables designed as a star-quad.
®
4) Manufactured without inner jacket
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Further cable types Page 266
