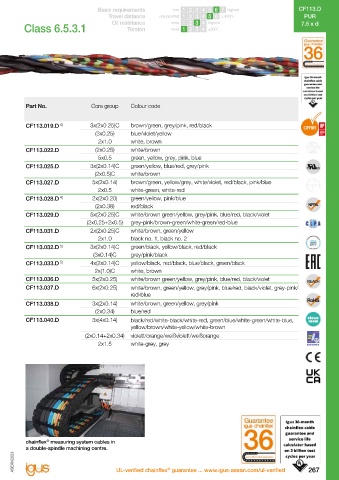

CF113.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF113.D
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Measuring system cable | PUR | chainflex CF113.D Class 6.5.3.1 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF113.019.D 4) (3x(2x0.25)C+(3x0.25)+2x1.0)C 10.0 93 143 CF113.019.D 4) 3x(2x0.25)C brown/green, grey/pink, red/black
(3x0.25) blue/violet/yellow
2x1.0 white, brown
CF113.022.D ((2x0.25)+5x0.5)C 8.0 54 94 CF113.022.D (2x0.25) white/brown
5x0.5 green, yellow, grey, pink, blue
CF113.025.D (3x(2x0.14)C+(2x0.5)C)C 10.0 72 141 CF113.025.D 3x(2x0.14)C green/yellow, blue/red, grey/pink
(2x0.5)C white/brown
CF113.027.D (5x(2x0.14)+2x0.5)C 9.0 52 105 CF113.027.D 5x(2x0.14) brown/green, yellow/grey, white/violet, red/black, pink/blue
2x0.5 white-green, white-red
CF113.028.D 4) (2x(2x0.20)+(2x0.38))C 7.5 44 69 CF113.028.D 4) 2x(2x0.20) green/yellow, pink/blue
(2x0.38) red/black
CF113.029.D (5x(2x0.25)C+(2x0.25+2x0.5))C 12.0 105 192 CF113.029.D 5x(2x0.25)C white/brown green/yellow, grey/pink, blue/red, black/violet
(2x0,25+2x0.5) grey-pink/brown-green/white-green/red-blue
CF113.031.D (2x(2x0.25)C+2x1.0)C 9.5 69 133 CF113.031.D 2x(2x0.25)C white/brown, green/yellow
2x1.0 black no. 1, black no. 2
CF113.032.D 5) 3x(2x0.14)C+(3x0.14)C 8.5 35 82 CF113.032.D 5) 3x(2x0.14)C green/black, yellow/black, red/black
(3x0.14)C grey/pink/black
CF113.033.D 5) 4x(2x0.14)C+2x(1.0)C 9.5 64 111 CF113.033.D 5) 4x(2x0.14)C yellow/black, red/black, blue/black, green/black
2x(1.0)C white, brown
CF113.036.D (5x(2x0.25))C 8.5 51 103 CF113.036.D 5x(2x0.25) white/brown green/yellow, grey/pink, blue/red, black/violet
CF113.037.D (6x(2x0.25))C 9.0 58 114 CF113.037.D 6x(2x0.25) white/brown, green/yellow, grey/pink, blue/red, black/violet, grey-pink/
red-blue
CF113.038.D (3x(2x0.14)+(2x0.34))C 8.5 36 87 CF113.038.D 3x(2x0.14) white/brown, green/yellow, grey/pink
(2x0.34) blue/red
CF113.040.D (3x(4x0.14)+(2x0.14+2x0.34) 10.0 88 155 CF113.040.D 3x(4x0.14) black/red/white-black/white-red, green/blue/white-green/white-blue,
+2x1.5)C yellow/brown/white-yellow/white-brown

(2x0.14+2x0.34) violett/orange/weißviolett/weißorange
2x1.5 white-grey, grey

4) Manufactured without inner jacket Further cable types Page 264
5) Manufactured without overall shield
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Cables available in the chainflex CASE
®
Simple savings on delivery, storage space and re-ordering with
the chainflex CASE - ship'n store by igus .
®
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case
®
chainflex measuring system cables in
a double-spindle machining centre.
EPLAN download, configurators  www.igus-asean.com/CF113D
