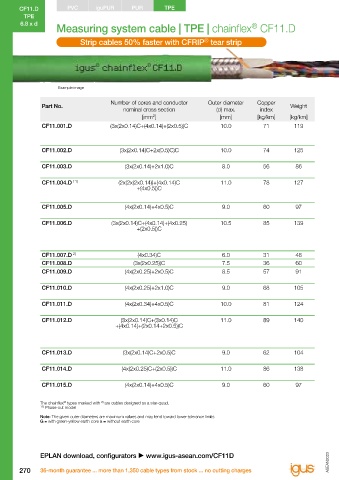

Page 276 - ASEAN Chainflex Catalogue 2023

CF11.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF11.D
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
6.8 x d ® Oil resistance none 1 2 3 4 highest 6.8 x d
Measuring system cable | TPE | chainflex CF11.D Class 6.6.4.1 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF11.001.D (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 71 119 CF11.001.D 3x(2x0.14)C green/yellow, black/brown, red/orange
(4x0.14) grey/blue/white-yellow/white-black
(2x0.5) brown-red/brown-blue
CF11.002.D (3x(2x0.14)C+2x(0.5)C)C 10.0 74 125 CF11.002.D 3x(2x0.14)C green/yellow, black/brown, red/orange
2x(0.5)C black, red
CF11.003.D (3x(2x0.14)+2x1.0)C 8.0 56 86 CF11.003.D 3x(2x0.14) white/brown, green/yellow, grey/pink
2x1.0 blue, red
CF11.004.D 11) (2x(2x(2x0.14))+(4x0.14)C 11.0 78 127 CF11.004.D 11) 2x(2x(2x0.14)) (brown/green)/(yellow/violet), (grey/pink)/(red/black)
+(4x0.5))C (4x0.14)C yellow-black/red-black/green-black/blue-black

(4x0.5) brown-green/white-green/blue/white
CF11.005.D (4x(2x0.14)+4x0.5)C 9.0 60 97 CF11.005.D 4x(2x0.14) white/brown, green/yellow, grey/pink, blue/red
4x0.5 black, violet, grey-pink, red-blue
CF11.006.D (3x(2x0.14)C+(4x0.14)+(4x0.25) 10.5 85 139 CF11.006.D 3x(2x0.14)C green/yellow, black/brown, red/orange
+(2x0.5))C (4x0.14) grey/blue/white-yellow/white-black

(4x0.25) yellow-brown/grey-brown/green-black/green-red
(2x0.5) brown-red/brown-blue
CF11.007.D 2) (4x0.34)C 6.0 31 48 CF11.007.D 2) 4x0.34 white, green, brown, yellow (star-quad)
CF11.008.D (3x(2x0.25))C 7.5 36 60 CF11.008.D 3x(2x0.25) white/brown, green/yellow, grey/pink
CF11.009.D (4x(2x0.25)+2x0.5)C 8.5 57 91 CF11.009.D 4x(2x0.25) brown/green, blue/violet, grey/pink, red/black
2x0.5 white, brown
CF11.010.D (4x(2x0.25)+2x1.0)C 9.0 68 105 CF11.010.D 4x(2x0.25) brown/green, blue/violet, grey/pink, red/black
2x1.0 white, brown
CF11.011.D (4x(2x0.34)+4x0.5)C 10.0 81 124 CF11.011.D 4x(2x0.34) black/brown, red/orange, green/yellow, blue/violet
4x0.5 black-white, red-white, yellow-white, blue-white
CF11.012.D (3x(2x0.14)C+(3x0.14)C 11.0 89 140 CF11.012.D 3x(2x0.14)C green/yellow, white/grey, blue/red
+(4x0.14)+(2x0.14+2x0.5))C (3x0.14)C red/green/brown

(4x0.14) grey/yellow/pink/violet
(2x0.14+2x0.5) blue/brown-blue/grey/brown-red
CF11.013.D (3x(2x0.14)C+2x0.5)C 9.0 62 104 CF11.013.D 3x(2x0.14)C white/brown, green/yellow, grey/pink
2x0.5 blue, red
CF11.014.D (4x(2x0.25)C+(2x0.5))C 11.0 86 138 CF11.014.D 4x(2x0.25)C white/brown, green/yellow, grey/pink, blue/red
(2x0.5) black no. 1/black no. 2
CF11.015.D (4x(2x0.14)+4x0.5)C 9.0 60 97 CF11.015.D 4x(2x0.14) brown/green, yellow/violet, grey/pink, red/black
4x0.5 blue, white, brown-green, white-green

The chainflex types marked with are cables designed as a star-quad.
®
2)
11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Further cable types Page 272
G = with green-yellow earth core x = without earth core

EPLAN download, configurators  www.igus-asean.com/CF11D
