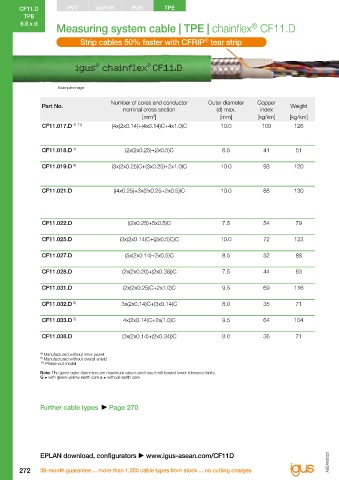

CF11.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF11.D
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
6.8 x d ® Oil resistance none 1 2 3 4 highest 6.8 x d
Measuring system cable | TPE | chainflex CF11.D Class 6.6.4.1 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF11.017.D 4) 11) (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 100 126 CF11.017.D 4) 11) 4x(2x0.14) red/black, brown/green, yellow/violet, grey/pink
(4x0.14)C blue-black/yellow-black/red-black/green-black
4x1.0 white-green, brown-green, blue, white
CF11.018.D 4) (2x(2x0.25)+2x0.5)C 6.5 41 51 CF11.018.D 4) 2x(2x0.25) red/black, grey/pink
2x0.5 white, brown
4)
CF11.019.D (3x(2x0.25)C+(3x0.25)+2x1.0)C 10.0 93 120 CF11.019.D 4) 3x(2x0.25)C brown/green, grey/pink, red/black
(3x0.25) blue/violet/yellow
2x1.0 white, brown
CF11.021.D ((4x0.25)+3x(2x0.25+2x0.5))C 10.0 88 130 CF11.021.D (4x0.25) white/brown/grey/black
3x2x0.25 white/yellow, white/grey, black/orange
black no. 1/black no. 2, black no. 3/black no. 4, black no. 5/black no.
3x2x0.5
6
CF11.022.D ((2x0.25)+5x0.5)C 7.5 54 79 CF11.022.D (2x0.25) white/brown
5x0.5 green, yellow, grey, pink, blue
CF11.025.D (3x(2x0.14)C+(2x0.5)C)C 10.0 72 123 CF11.025.D 3x(2x0.14)C green/yellow, blue/red, grey/pink
(2x0.5) white/brown
CF11.027.D (5x(2x0.14)+2x0.5)C 8.5 52 88 CF11.027.D 5x(2x0.14) brown/green, yellow/grey, white/violet, red/black, pink/blue
2x0.5 white-green, white-red
CF11.028.D (2x(2x0.20)+(2x0.38))C 7.5 44 63 CF11.028.D 2x(2x0.20) green/yellow, pink/blue
(2x0.38) red/black
CF11.031.D (2x(2x0.25)C+2x1.0)C 9.5 69 116 CF11.031.D 2x(2x0.25)C white/brown, green/yellow
2x1.0 black no. 1, black no. 2
CF11.032.D 5) 3x(2x0.14)C+(3x0.14)C 8.0 35 71 CF11.032.D 5) 3x(2x0.14)C green/black, yellow/black, red/black
(3x0.14)C grey/pink/black
CF11.033.D 5) 4x(2x0.14)C+2x(1.0)C 9.5 64 104 CF11.033.D 5) 4x(2x0.14)C yellow/black, red/black, blue/black, green/black
2x(1.0)C white, brown
CF11.038.D (3x(2x0.14)+(2x0.34))C 8.0 36 71 CF11.038.D 3x(2x0.14) white/brown, green/yellow, grey/pink
(2x0.34) blue/red

4) Manufactured without inner jacket
5) Manufactured without overall shield
11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Further cable types Page 270
