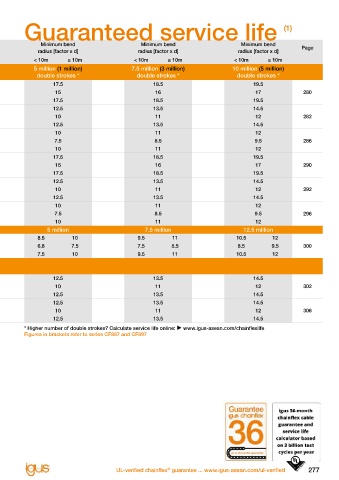

chainflex guarantee Guaranteed service life (1)
®

Minimum bend Minimum bend Minimum bend
®
chainflex Temperature, v max. [m/s] a max. Travel radius [factor x d] radius [factor x d] radius [factor x d] Page
2
cables from/to [°C] [m/s ] distance [m]
unsupported gliding < 10m ≥ 10m < 10m ≥ 10m < 10m ≥ 10m
Servo cables 5 million (1 million) 7.5 million (3 million) 10 million (5 million)
double strokes * double strokes * double strokes *
+5 / +15 17.5 18.5 19.5
CF887 +15 / +60 3 - 20 ≤ 10 15 16 17 280
+60 / +70 17.5 18.5 19.5
+5 / +15 12.5 13.5 14.5
CF210.UL +15 / +60 10 2 50 ≤ 10 10 11 12 282
+60 / +70 12.5 13.5 14.5
+5 / +15 10 11 12
CF21.UL +15 / +60 10 5 80 ≤ 100 7.5 8.5 9.5 286
+60 / +70 10 11 12
-20 / -10 17.5 18.5 19.5
CF897 -10 / +70 3 - 20 ≤ 10 15 16 17 290
+70 / +80 17.5 18.5 19.5
-25 / -15 12.5 13.5 14.5
CF270.UL.D -15 / +70 10 2 50 ≤ 10 10 11 12 292
+70 / +80 12.5 13.5 14.5
-25 / -15 10 11 12
CF27.D -15 / +70 10 5 80 ≤ 100 7.5 8.5 9.5 296
+70 / +80 10 11 12
5 million 7.5 million 12.5 million
-35 / -25 8.5 10 9.5 11 10.5 12
CF29.D -25 / +90 10 5 80 > 400 6.8 7.5 7.5 8.5 8.5 9.5 300
+90 / +100 7.5 10 9.5 11 10.5 12
Hybrid cables

+5 / +15 12.5 13.5 14.5
CF220.UL.H New! +15 / +60 10 2 50 ≤ 10 10 11 12 302
+60 / +70 12.5 13.5 14.5
-25 / -15 12.5 13.5 14.5
CF280.UL.H New! -15 / +70 10 2 50 ≤ 10 10 11 12 306
+70 / +80 12.5 13.5 14.5
(1) Guaranteed service life for these series (details  see page 28-29) * Higher number of double strokes? Calculate service life online:  www.igus-asean.com/chainflexlife
Figures in brackets refer to series CF887 and CF897
