cable igus chainflex system cables (hybrid servo cables) … cable
... for single-cable solutions in drive technology

®
In chainflex series CF220.UL.H and CF280.UL.H, In the 3,800m large igus laboratory, electrical Selection table hybrid servo cables
2
®
you will see system cables for intelligent drive concepts parameters such as capacitance, impedance, CF220.UL.H CF280.UL.H
for many well known system manufacturers. attenuation and crosstalk are measured over the Hybrid technology/ PVC PUR
entire test period of several million double strokes and Manufacturer 10 x d 10 x d
®
To save installation space in e-chain systems some monitored for compliance with the specifications. Page 302 Page 306
manufacturers combine the servo cable for power with SICK (HIPERFACE DSL)
®
®
the measuring system cable for position data to make igus chainflex servo hybrid cables are available in ABB
a so-called hybrid cable. The feedback of the position cost-effective PVC and oil-resistant, halogen-free PUR. AMK
data to the servo controller is done frequently by various B&R
®
digital bus technologies. As with all chainflex cables, igus also offers a Baumüller
®
guarantee of 36 months or 10 million double strokes for BCB
When combining these two cables into a hybrid cable, the servo hybrid cables and 5 million for chainflex M. Beckhoff
®
it is necessary to guarantee the data transmission BMP
properties and the EMC behavior of the cable for many In the chart on the opposite page you will find an CEDS
millions of movement cycles. overview of all currently available hybrid cables grouped Fertig
by system manufacturer. Fine
High optical coverage shielding designs are used in igus Han´s
®
chainflex servo hybrid cables because of the close The companies listed are drive systems manufacturers Harmonic Drive AG
®
proximity of the power cores carrying high interference or technology providers whose rotation sensors are Heidrive
square-wave signals to the bus cores. commonly available. Infranor
IRT
A secure transmission of bus signals at maximum cable Jetter
length and at maximum speed makes high demands on KEBA CF220.UL.H100-.H102 CF280.UL.H100-.H102
the insulating materials of the bus or data cores. Kinavo
Kollmorgen
Lafert
LTi DRiVES
Mavilor
Maxsine
metronix
NUM
Parker
PowerMotor
ROBOX
Selema
Siboni
Sigmatek
STEP
TG-Drives
WEG
SEW cable type A, B, C, D, E
SEW CF220.UL.H203 CF280.UL.H200-.H206
MOVILINK DDI
SEW - CF280.UL.H207
SINAMICS S210
Siemens CF220.UL.H300-.H304 CF280.UL.H300-.H304
IndraDrive / crtlXDRIVE
Bosch Rexroth - CF280.UL.H400-.H401

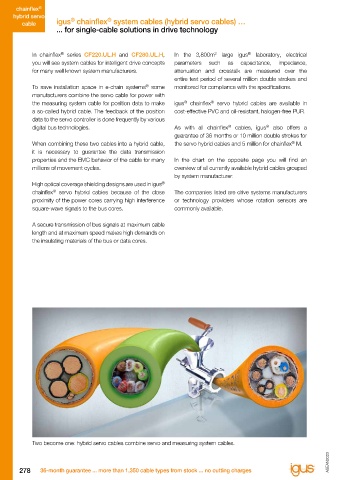

Two become one: hybrid servo cables combine servo and measuring system cables. HEIDENHAIN
B&R CF220.UL.H501 CF280.UL.H501-.H502
