       chainflex                                                                                                                                                                                                                chainflex
      hybrid servo        ®            ®                                                                                                                                                                                       hybrid servo
         cable       igus  chainflex  system cables (hybrid servo cables) …                                                                                                                                                       cable
                     ... for single-cable solutions in drive technology



                                                                                        ®

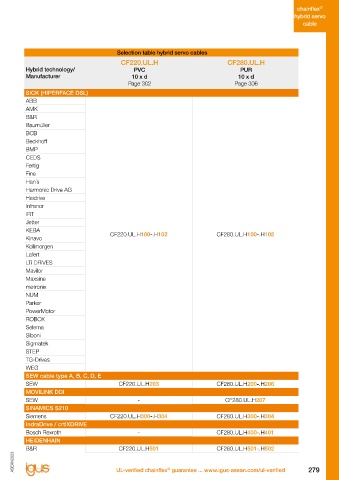

            In chainflex  series  CF220.UL.H and  CF280.UL.H,   In the 3,800m  large igus  laboratory, electrical                                                Selection table hybrid servo cables
                                                                            2
                      ®
            you will see system cables for intelligent drive concepts   parameters  such  as  capacitance,  impedance,                                             CF220.UL.H                           CF280.UL.H
            for many well known system manufacturers.         attenuation and crosstalk are measured over the                    Hybrid technology/                    PVC                                  PUR
                                                              entire test period of several million double strokes and           Manufacturer                         10 x d                                10 x d
                                                    ®
            To save installation space in e-chain systems  some   monitored for compliance with the specifications.                                                  Page 302                             Page 306
            manufacturers combine the servo cable for power with                                                                 SICK (HIPERFACE DSL)
                                                                           ®
                                                                  ®
            the measuring system cable for position data to make   igus  chainflex  servo hybrid cables are available in         ABB
            a so-called hybrid cable. The feedback of the position   cost-effective PVC and oil-resistant, halogen-free PUR.     AMK
            data to the servo controller is done frequently by various                                                           B&R
                                                                                              ®
            digital bus technologies.                         As with all chainflex  cables, igus  also offers a                 Baumüller
                                                                                 ®
                                                              guarantee of 36 months or 10 million double strokes for            BCB
            When combining these two cables into a hybrid cable,   the servo hybrid cables and 5 million for chainflex  M.       Beckhoff
                                                                                                       ®
            it is necessary to guarantee the data transmission                                                                   BMP
            properties and the EMC behavior of the cable for many   In the chart on the opposite page you will find an           CEDS
            millions of movement cycles.                      overview of all currently available hybrid cables grouped          Fertig
                                                              by system manufacturer.                                            Fine
            High optical coverage shielding designs are used in igus                                                             Han´s
                                                          ®
            chainflex  servo hybrid cables because of the close   The companies listed are drive systems manufacturers           Harmonic Drive AG
                    ®
            proximity of the power cores carrying high interference   or technology providers whose rotation sensors are         Heidrive
            square-wave signals to the bus cores.             commonly available.                                                Infranor
                                                                                                                                 IRT
            A secure transmission of bus signals at maximum cable                                                                Jetter
            length and at maximum speed makes high demands on                                                                    KEBA                          CF220.UL.H100-.H102                  CF280.UL.H100-.H102
            the insulating materials of the bus or data cores.                                                                   Kinavo
                                                                                                                                 Kollmorgen
                                                                                                                                 Lafert
                                                                                                                                 LTi DRiVES
                                                                                                                                 Mavilor
                                                                                                                                 Maxsine
                                                                                                                                 metronix
                                                                                                                                 NUM
                                                                                                                                 Parker
                                                                                                                                 PowerMotor
                                                                                                                                 ROBOX
                                                                                                                                 Selema
                                                                                                                                 Siboni
                                                                                                                                 Sigmatek
                                                                                                                                 STEP
                                                                                                                                 TG-Drives
                                                                                                                                 WEG
                                                                                                                                 SEW cable type A, B, C, D, E
                                                                                                                                 SEW                              CF220.UL.H203                     CF280.UL.H200-.H206
                                                                                                                                 MOVILINK DDI
                                                                                                                                 SEW                                    -                              CF280.UL.H207
                                                                                                                                 SINAMICS S210
                                                                                                                                 Siemens                       CF220.UL.H300-.H304                  CF280.UL.H300-.H304
                                                                                                                                 IndraDrive / crtlXDRIVE
                                                                                                                                 Bosch Rexroth                          -                           CF280.UL.H400-.H401
            Two become one: hybrid servo cables combine servo and measuring system cables.                                       HEIDENHAIN
                                                                                                                                 B&R                              CF220.UL.H501                     CF280.UL.H501-.H502
                                                                                                                    ASEAN2023  ASEAN2023

        278    36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges                                                              UL-verified chainflex  guarantee ... www.igus-asean.com/ul-verified  279
                                                                                                                                                                                   ®
