CF210.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF210.UL
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d

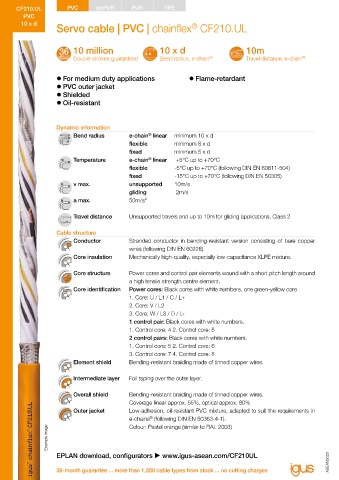

Servo cable | PVC | chainflex CF210.UL Class 4.2.2.1 Torsion none 1 2 3 4 ±360°

10 million 10 x d 10m Electrical information 600/1,000V (following DIN VDE 0298-3)
Nominal voltage
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
1,000V (following UL)
Testing voltage 4,000V (following DIN EN 50395)
z For medium duty applications z Flame-retardant
z PVC outer jacket Properties and approvals
z Shielded UV resistance Medium
z Oil-resistant
Oil resistance Oil-resistant (following DIN EN 50363-4-1), Class 2

Dynamic information Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
®
Bend radius e-chain linear minimum 10 x d
flexible minimum 8 x d Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
fixed minimum 5 x d 1992)
Temperature e-chain linear +5°C up to +70°C UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
®
flexible -5°C up to +70°C (following DIN EN 60811-504) service life calculator based on 2 billion test cycles per year"
fixed -15°C up to +70°C (following DIN EN 50305) UL/CSA AWM See data sheet for details  www.igus-asean.com/CF210UL
v max. unsupported 10m/s
gliding 2m/s NFPA Following NFPA 79-2018, chapter 12.9
a max. 50m/s²
EAC Certificate No. RU C-DE.ME77.B.00863/20
Travel distance Unsupported travels and up to 10m for gliding applications, Class 2
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
Cable structure
Conductor Stranded conductor in bending-resistant version consisting of bare copper Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
wires (following DIN EN 60228).
Core insulation Mechanically high-quality, especially low-capacitance XLPE mixture. Cleanroom According to ISO Class 2. The outer jacket material of this series complies with
CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
Core structure Power cores and control pair elements wound with a short pitch length around CE Following 2014/35/EU
a high tensile strength centre element.
Core identification Power cores: Black cores with white numbers, one green-yellow core. UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
1. Core: U / L1 / C / L+
2. Core: V / L2
3. Core: W / L3 / D / L- Guaranteed service life (details see page 28-29)
1 control pair: Black cores with white numbers. Double strokes* 5 million 7.5 million 10 million

1. Control core: 4 2. Control core: 5 Temperature, R min. R min. R min.
2 control pairs: Black cores with white numbers. from/to [°C] [factor x d] [factor x d] [factor x d]
1. Control core: 5 2. Control core: 6 +5/+15 12.5 13.5 14.5
3. Control core: 7 4. Control core: 8 +15/+60 10 11 12
Element shield Bending-resistant braiding made of tinned copper wires. +60/+70 12.5 13.5 14.5
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Intermediate layer Foil taping over the outer layer.
Typical application areas
Overall shield Bending-resistant braiding made of tinned copper wires. z For medium duty applications, Class 4
Coverage linear approx. 55%, optical approx. 80% z Unsupported travels and up to 10m for gliding applications, Class 2
Outer jacket Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in z Light oil influence, Class 2
e-chains (following DIN EN 50363-4-1). z No torsion, Class 1
®
Preferably indoor applications, but also outdoor ones at temperatures > 5 °C
Colour: Pastel orange (similar to RAL 2003)
z
Example image z Wood/stone processing, packaging industry, feeding, handling, adjusting devices

EPLAN download, configurators  www.igus-asean.com/CF210UL
